Installation

2.4L TURBO

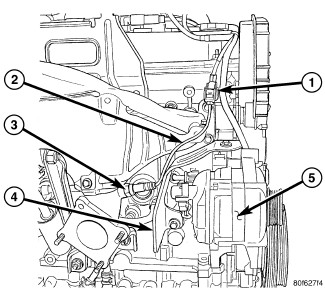

1. Install O2 sensor (3) using an oxygen sensor crow foot wrench and tighten to 41 Nm (30 ft. lbs.).
2. Route O2 sensor wire above the heat shield (4) for the generator and away from the exhaust manifold.
3. Lower vehicle.
4. Connect and lock the O2S connector (1). It is on the passenger side near the EVAP purge solenoid.
5. Connect the negative battery cable.
