Rear Guide Bar - Installation

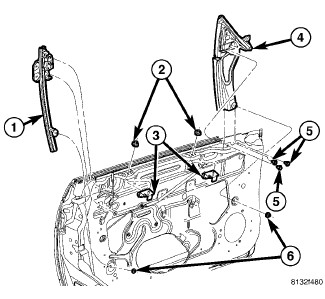

INSTALLATION










1. If a new rear rail assembly is being installed, preset bottom jack screw using old rear rail assembly as a reference.
2. Position rear rail assembly on vehicle.
3. Using a suitable allen wrench, hold jack screw stationary while installing nut attaching bottom of rear rail assembly to inner door panel.
4. Install nut attaching top of rear rail assembly to inner door panel.
5. Verify glass fit and operation. Adjust door glass as necessary.
6. Install door trim panel and water dam.
