Section 25 (Cellular Systems, Entertainment Systems & Navigation Systems (Service Information)): Amplifier: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

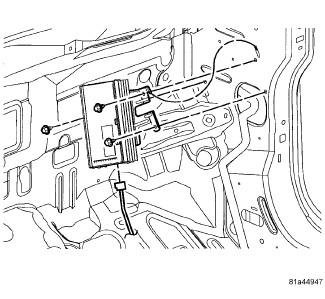

Fig 1: Identifying Amplifier & Mounting Fasteners
GC0120921Courtesy of CHRYSLER LLC
  1. Connect wire harness connector to amplifier.
  2. Install amplifier.
  3. Install the amplifier mounting fasteners.
  4. Install the cowl trim panel. Refer to Body/Interior/PANEL, Cowl Trim - Installation .
  5. Connect battery negative cable.
