P0501-Vehicle Speed Sensor 1 Performance (MTX Non-Abs): Notes

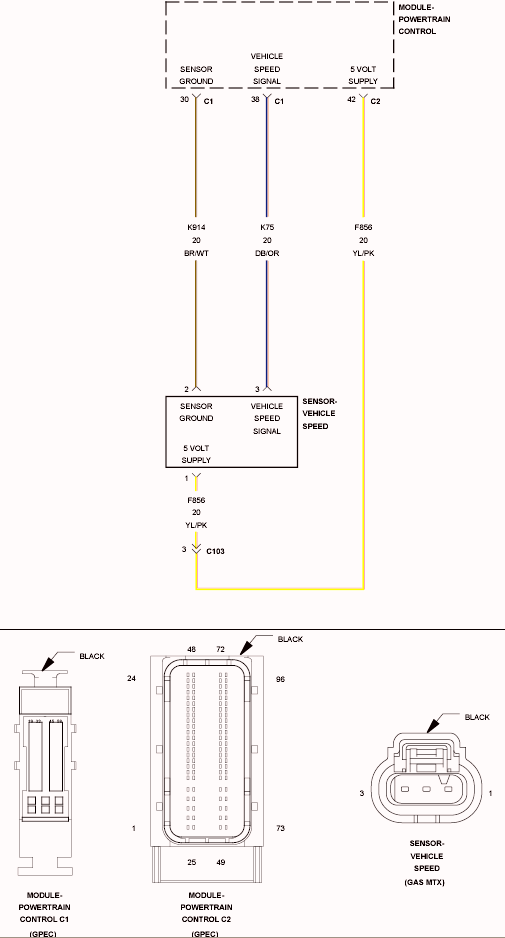

Fig 1: Vehicle Speed Sensor Circuit
GC0123852Courtesy of CHRYSLER LLC
