All Doors Fail To Lock

ALL DOORS FAIL TO LOCK

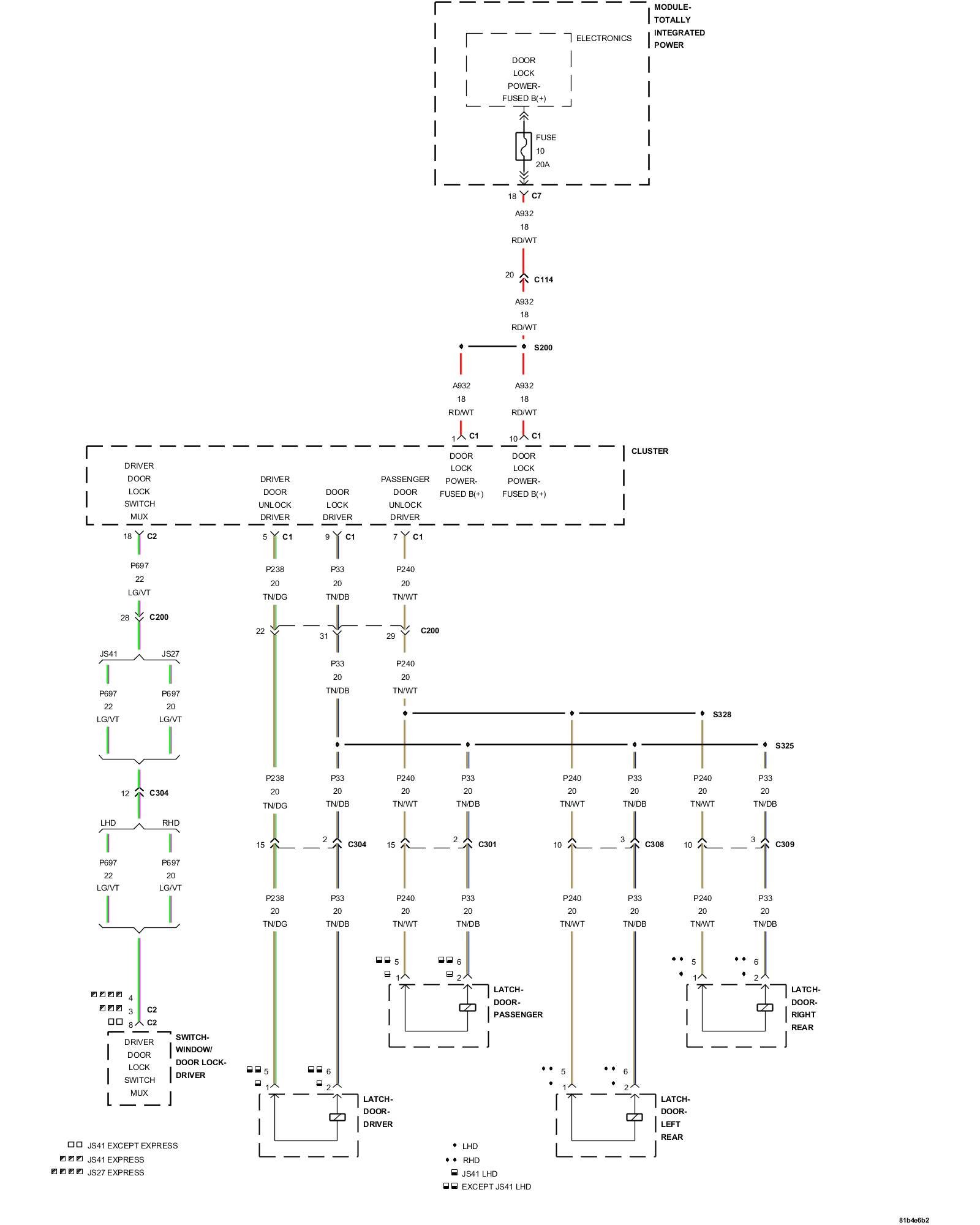

For a complete wiring diagram,refer to the wiring information Electrical Diagrams.






NOTE: This test does not cover a secondary latch problem on a right hand drive vehicle.
(P33) DOOR LOCK DRIVER WIRE SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the Instrument Cluster C1 connector.
3. Measure the resistance between ground and the (P33) Door Lock Driver circuit.

Is the resistance below 5.0 ohms?

No

- Replace the Instrument Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

Yes

- Repair the (P33) Door Lock Driver wire for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
