Compass Module - Installation

INSTALLATION

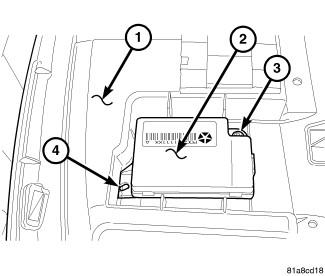

1. Position the Remote Compass Module (RCM) (2) onto the top of the Instrument Panel (IP) (1).
2. Connect the electrical connector.
3. Align the RCM mounting tab with the slot in the IP (4) and push forward to fully seat the RCM (2).
4. Install the RCM retaining screw (3).
5. Install the instrument panel top pad, Instrument Panel Pad - Installation.
6. Connect the battery negative cable.
7. Perform the Compass Variance Adjustment, Adjustments.
8. Perform the Manual Compass Calibration, Adjustments.
9. Verify proper compass operation.
