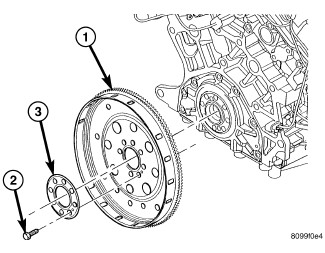

Flex Plate Torque
Flex Plate
to Crankshaft
95 Nm (70 ft. lbs)
Flex Plate
to Torque Converter
75 Nm (55 ft. lbs)
