DTCS P0645 To P2008 - NGC
>>
P1115-General Temperature Rationality
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P1115-General Temperature Rationality: Notes

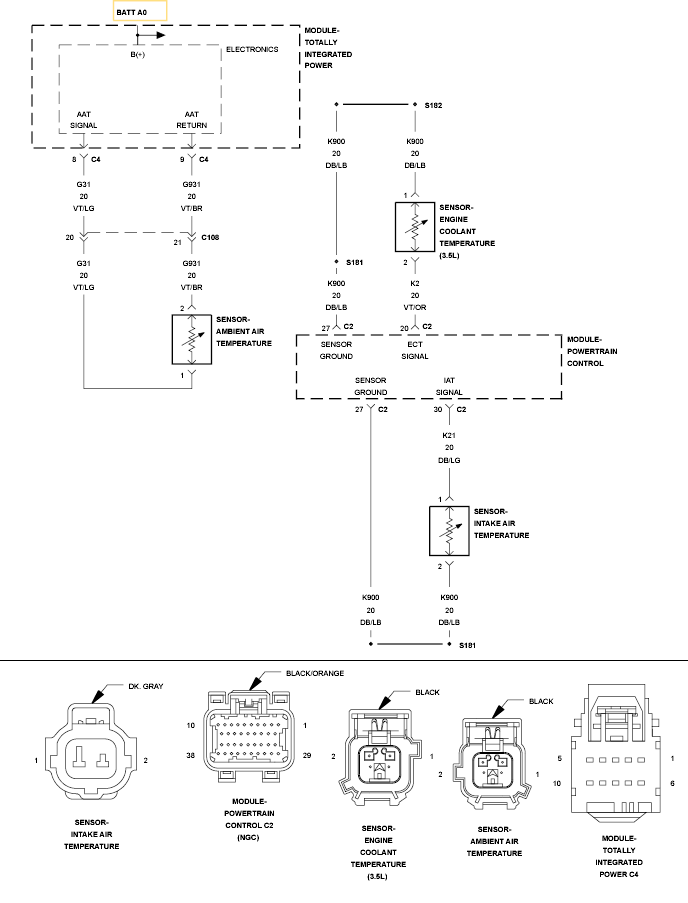

Fig 1: Ambient Air Temperature Sensor Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
