Brake Light Switch: Service and Repair

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. If equipped, remove the silencer pad from below the steering column. Lower Silencer Panel - Removal.

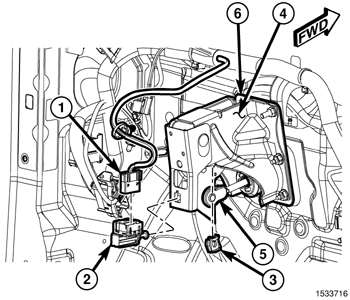

3. Locate the brake lamp switch (2) on the brake pedal support bracket (4) under the instrument panel.
4. Depress and hold the brake pedal in the depressed position.
5. Rotate the brake lamp switch housing (2) counterclockwise about 30 degrees to align the tabs on the switch locking collar with the keyed hole in the brake pedal support bracket.
6. Pull the switch straight rearward from the keyed hole to remove it from the bracket.
7. Release the brake pedal.
8. Disconnect the wire harness connector (1) from the switch.
