Tube, Connecting: Removal: Removal
- Remove the engine cover.

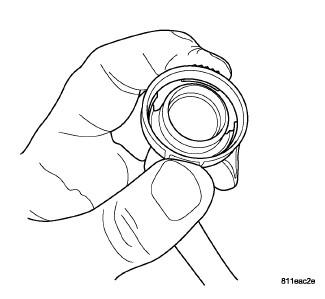

- To release the connecting tube, squeeze the quick connect fitting as shown in illustration.
- Disengage the purge line retainer (2) from the connecting tube (1).
- Disconnect and remove the connecting tube (1) from the air pump and the one way check valve.
- The connecting tube O-rings can be reused if not damaged.
