P0111-Intake Air Temperature Sensor Performance: Notes

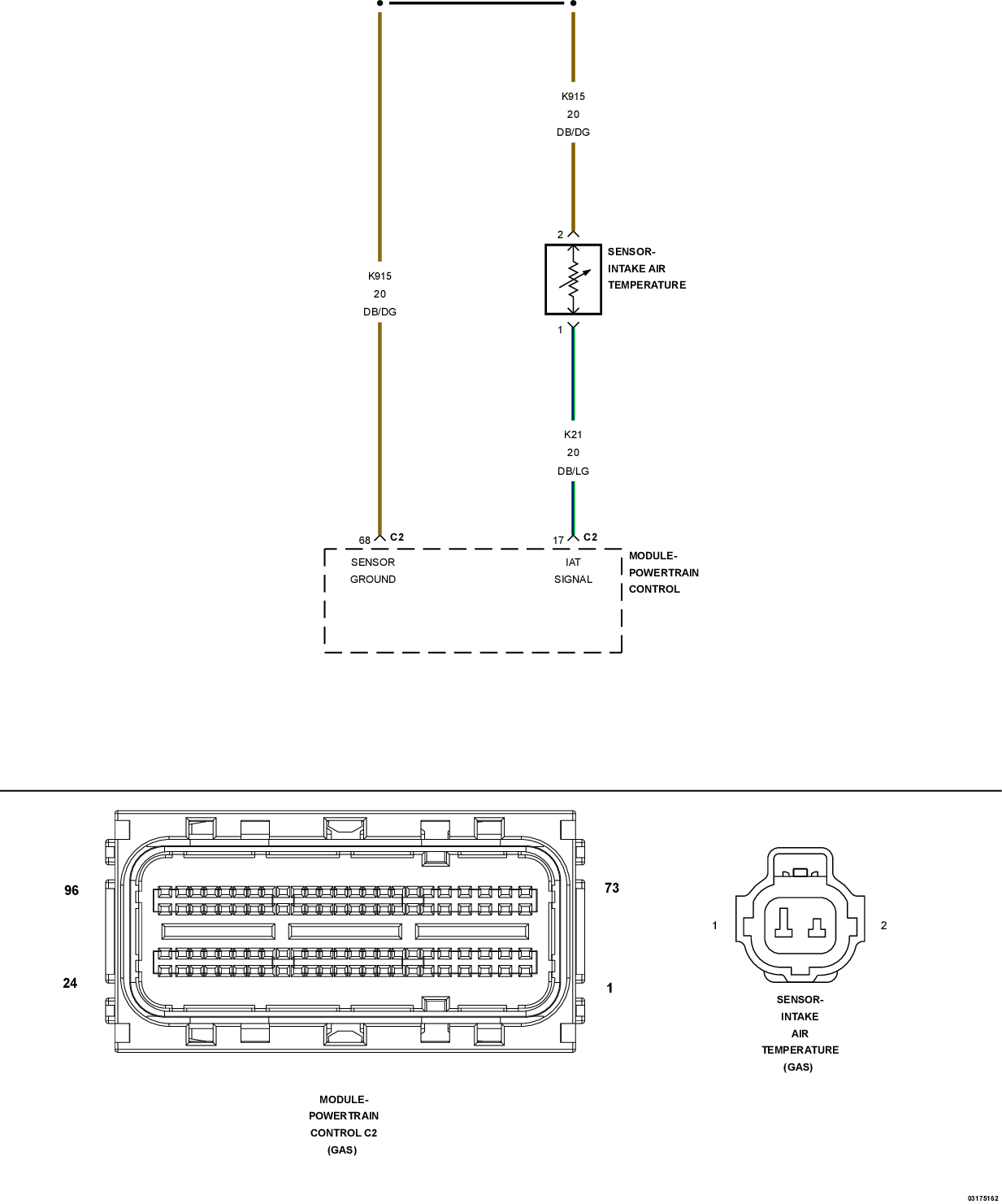

Fig 1: Intake Air Temperature Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
