Keyless Ignition Node Receiver - Installation





INSTALLATION





1. Push the Keyless Ignition Node (KIN) into the instrument panel until it snaps into place.
2. Reach through the Integrated Center Stack (ICS) screen opening and connect the KIN electrical connector.

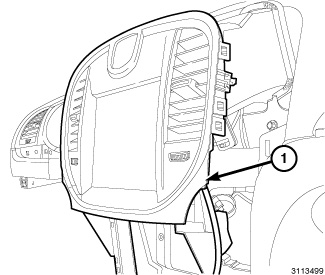

3. Install the instrument cluster bezel (1) Instrument Cluster Bezel - Installation.
4. Connect the negative battery cable.
