Input Speed Sensor - Installation

INSTALLATION

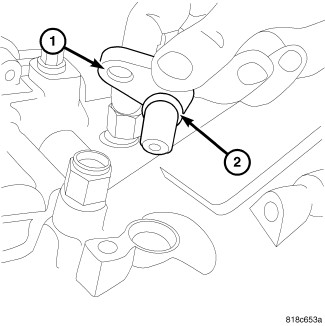

1. Install a new O-ring (2).





2. Install input speed sensor (1) into case.





3. Install bolt at input speed sensor and tighten to 12 Nm (105 in. lbs.).
4. Engage electrical connector.
