Fan, Cooling: Installation: Installation

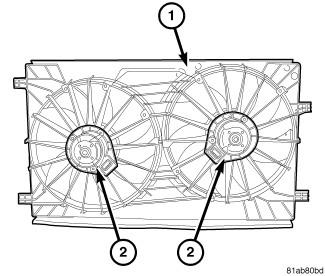

| 1 - SHROUD |
| 2 - FAN MOTOR |
- Position radiator fan module in retaining clip.
- Make sure clips are fully engaged.
- Install the wiring harness loom across the upper radiator core support.
- Connect radiator fan electrical connector.
- Install the oil indicator tube.
- Install upper radiator hose at radiator.
- Fill the cooling system Refer to STANDARD PROCEDURE .
