Alignment: Specifications

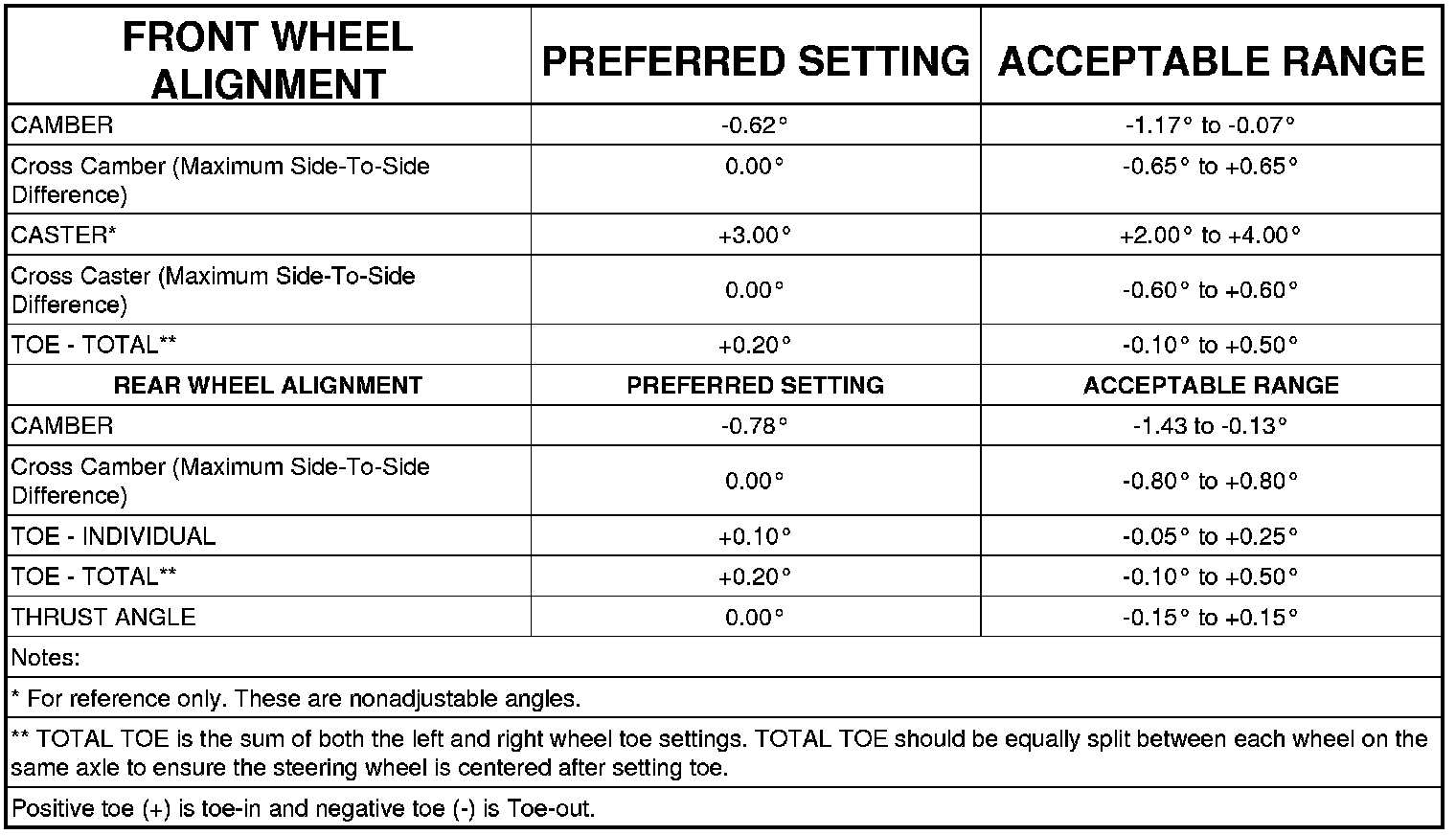

SPECIFICATIONS

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height. Wheel Alignment Procedures
