1/2

EXHAUST TEMPERATURE SENSOR 1/2

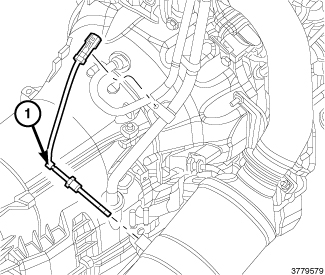

1. Install the exhaust temperature sensor (1) and tighten to 47 Nm (35 ft. lbs.).

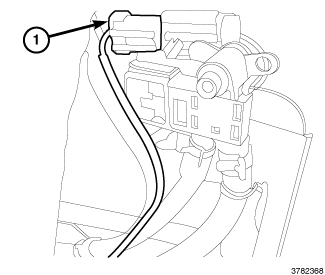

2. Connect the exhaust temperature sensor wire harness connector (1).
3. Install the transmission belly pan.
4. Connect the negative battery cable.
