Remote Start Antenna - Installation

INSTALLATION

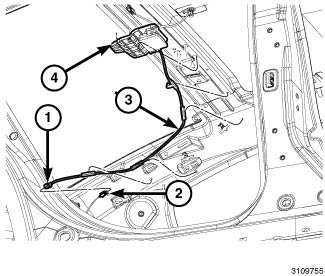

1. Mount the remote start antenna (4) to the mounting bracket.
2. Install the antenna and mounting bracket into the structural support rib.
3. Install the remote start harness (3) to the driver side D-pillar.
4. Connect the remote start antenna (1) to the RF Hub module jumper wire (2) located on the D-pillar.
5. Install the headliner Headliner - Installation.
6. Connect the negative battery cable.
