Oil Intake Control Valve - Installation

INSTALLATION

1. Lubricate the oil control valve (OCV) rubber O-ring seal with clean engine oil.
2. Install the OCV and rotate into position.

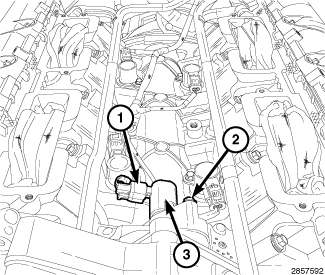

3. Install the OCV (3) retaining bolt (2) and tighten to 11 Nm (8 ft. lbs.).
4. Connect the OCV electrical connector (1).
5. Install the intake manifold Intake Manifold - Installation.
