Variable Valve Timing Assembly - Removal







REMOVAL

NOTE:
Camshaft phaser and camshaft sprocket are supplied as an assembly, do not attempt to disassemble.





1. Remove camshafts Camshaft - Removal.

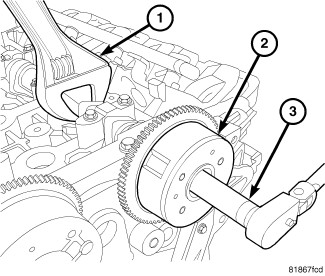

2. Remove camshaft phaser (2) retaining bolt while holding the camshaft in place with a wrench (1) on the camshaft flats.

3. Remove phaser (2) assembly from camshaft.
