Wheel Stud / Lug Nut

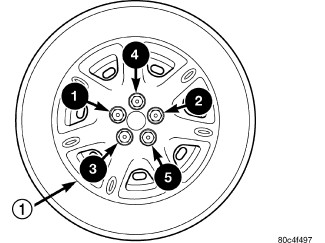

ALUMINUM WHEEL





Progressively tighten all wheel mounting nuts in the proper sequence shown. Tighten nuts to a final torque of 135 Nm (100 ft. lbs.).

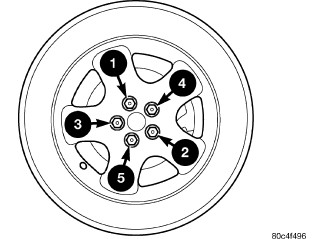

STEEL WHEEL











Progressively tighten all wheel mounting (lug) nuts in the proper sequence shown. Tighten the nuts to a final torque of 135 Nm (100 ft. lbs.).
