Ignition Capacitor - Installation

3.6L

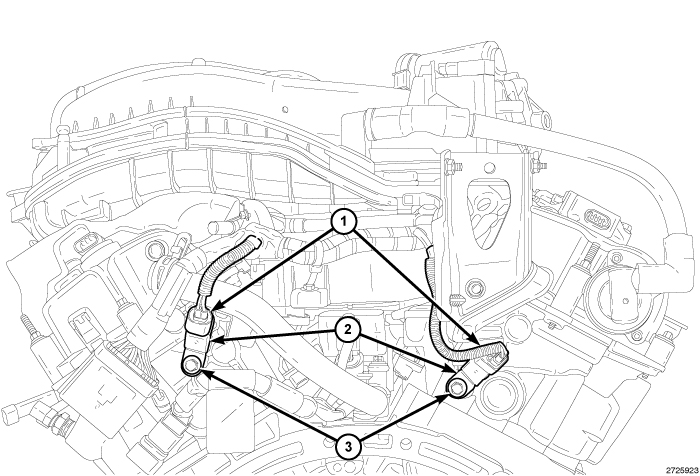

1. Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to 10 Nm (89 in. lbs.).

2. Connect the electrical connector (1).

3. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
