Front

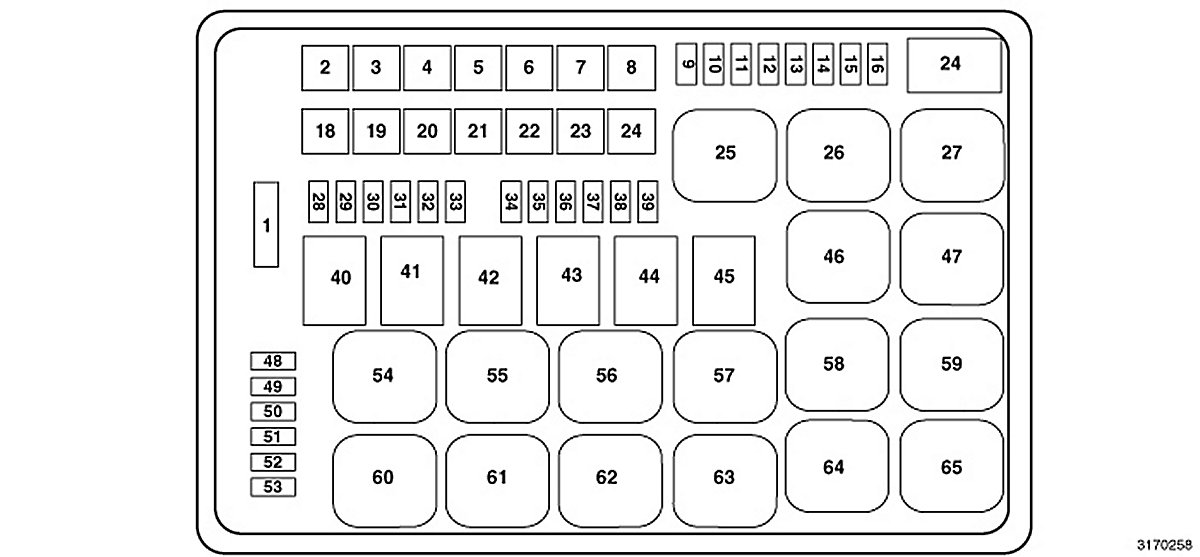

Front Distribution Center

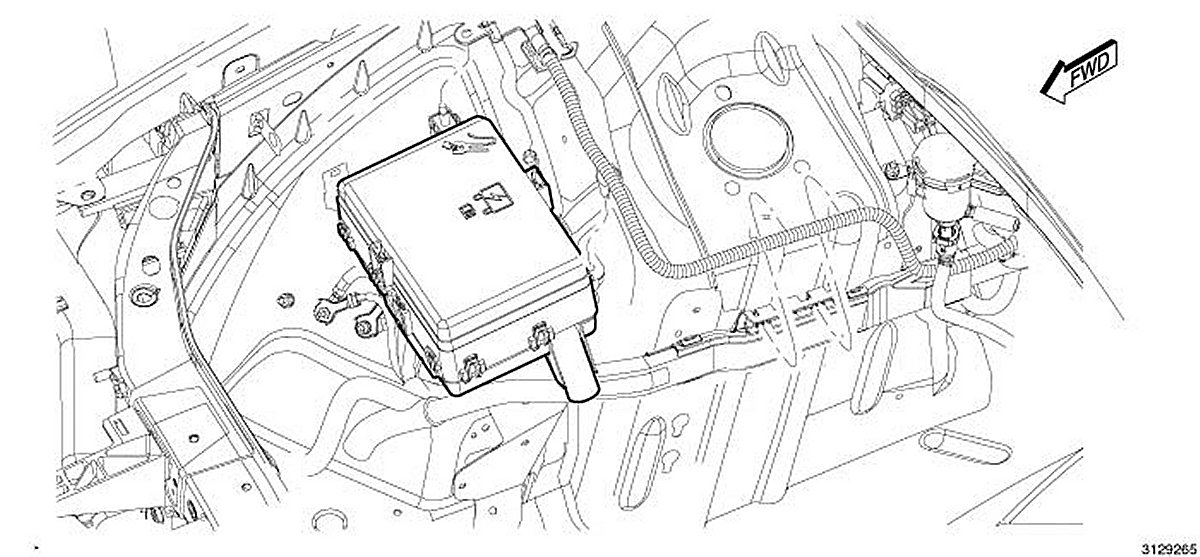

Front PDC Location:






Front PDC is located in the engine compartment on the passenger side fender.
