Removal And Installation: Front: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Illustration shown with instrument panel removed from view for clarity.
- Position the HVAC module to the air inlet housing.
- Install and tighten the screws (1) that secure the HVAC module to the air inlet housing.
- Connect the wire harness connector (2) to the HVAC module.

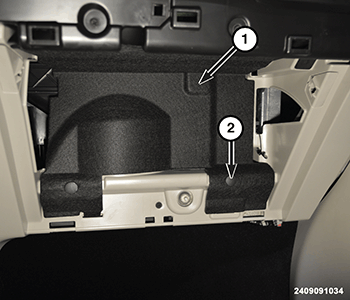

- Install the glove box trim panel and glove box and hush panel (1). Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
