Capacitor, Ignition: Installation: 5.7L/6.4L

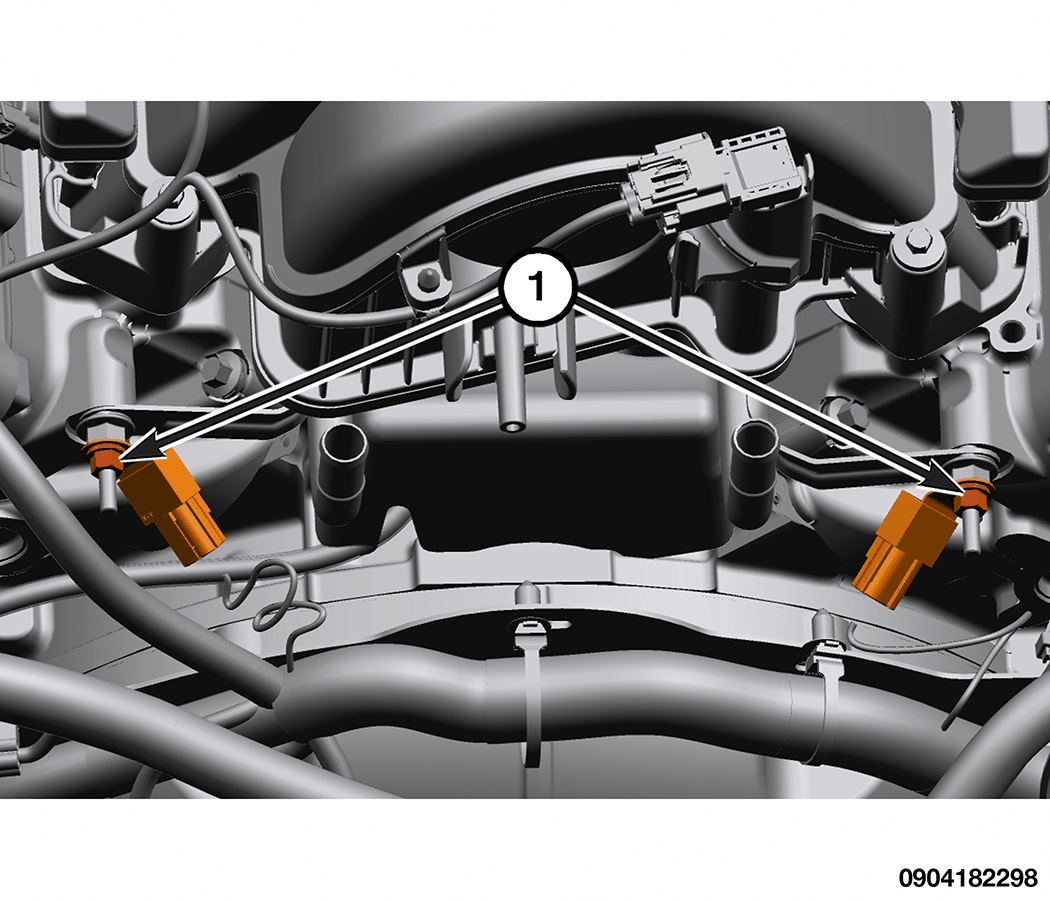

GC0200201Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition capacitors and securely tighten the fasteners (1).

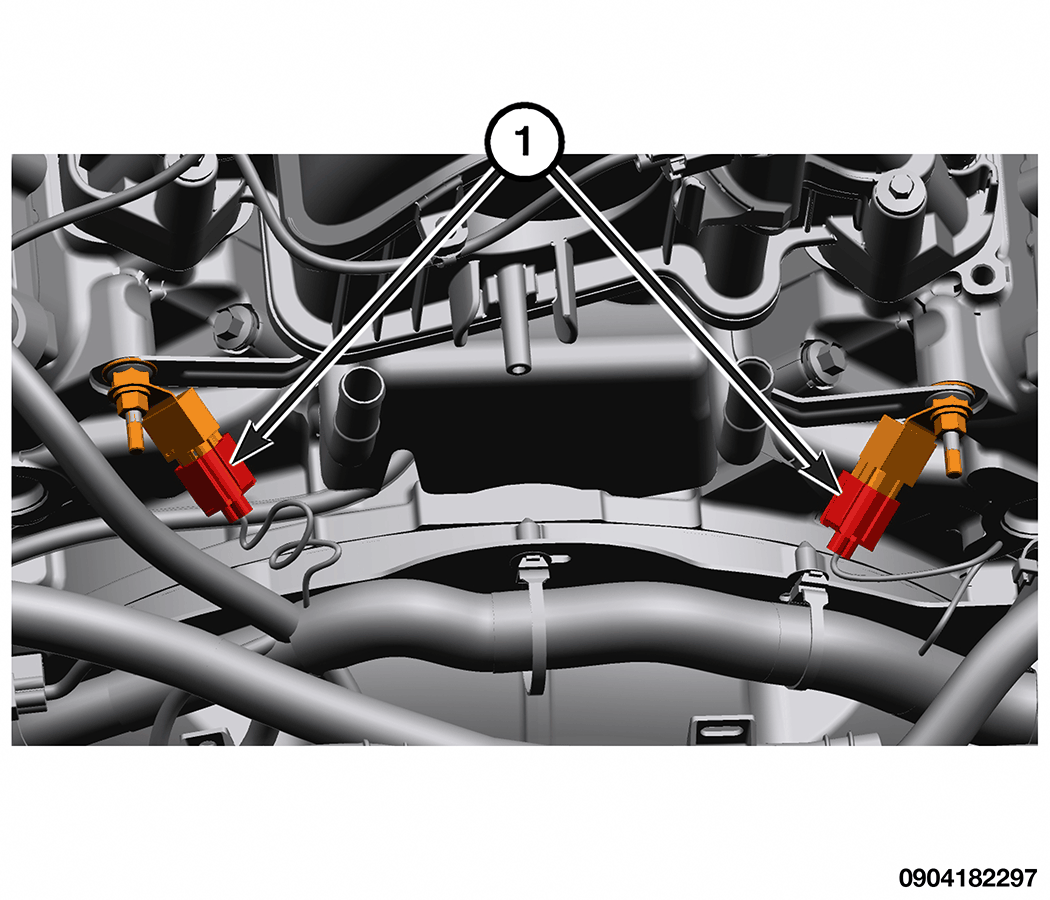

    GC0200204Courtesy of CHRYSLER GROUP, LLC
  2. Install the ignition capacitor wire harness connectors (1).
  3. Install the engine cover.
  4. Connect the negative battery cable.
