Power Window Switches
REMOVAL
SWITCH - DRIVER DOOR
- Disconnect and isolate the battery negative cable.

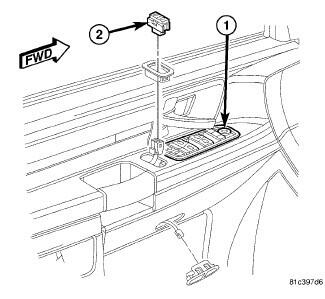

- Using a pry tool, gently remove the switch assembly or the vent window switch from the door trim panel.
1 - Switch Assembly 2 - Vent Window Switch - Disconnect the electrical connectors.
SWITCH - PASSENGER DOOR
- Disconnect and isolate the battery negative cable.
- Using a pry tool, gently remove the switch assembly from the door trim panel.
- Disconnect the electrical connector.
SWITCH - SLIDING DOORS
- Disconnect and isolate the battery negative cable.

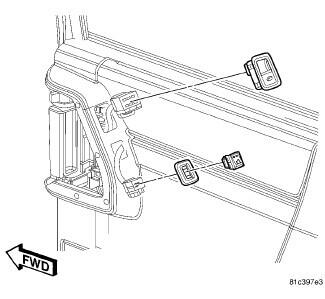

- Using a pry tool, gently remove the switch assembly from the door trim panel.
- Disconnect the electrical connector.
INSTALLATION
SWITCH - DRIVER DOOR
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Firmly snap the switch assembly into the door trim panel.
SWITCH - PASSENGER DOOR
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Firmly snap the switch assembly into the door trim panel.
SWITCH - SLIDING DOORS
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Firmly snap the switch assembly into the inside door handle.
