Charge/Test Menu

Courtesy of CHRYSLER GROUP, LLC

Automatically tests and charges battery, starting, and charging system. Generates a warranty code for Replace and Bad Cell decisions.

Courtesy of CHRYSLER GROUP, LLC

Pre Delivery Inspection (PDI): For testing delivered vehicles and lot maintenance. Uses the same inputs as a diagnostic charge.

Courtesy of CHRYSLER GROUP, LLC

Dual Battery Charge mode allows the charger to be used with dual battery systems.

Courtesy of CHRYSLER GROUP, LLC

Makes high output current available to boost charge an in-vehicle battery and assist in starting the engine.

Courtesy of CHRYSLER GROUP, LLC

Provides a timed charge that ranges from 5 to 120 minutes or a continuous charge that ends when the STOP key is pressed.

Courtesy of CHRYSLER GROUP, LLC

In this mode the charger can provide a trickle charge for long term, low amp battery charging.

Courtesy of CHRYSLER GROUP, LLC

Generates a 15-digit warranty codes for physically inoperative batteries or customer good will.

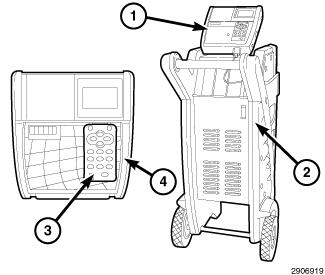

1. Control module:  Backlit graphical display and keypad for data entry.
2. ON/OFF switch:  ON/OFF switch turns power on and off to the GR8.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Control Module

   2 - On/Off Switch

   3 - Status Light

   4 - Data Card Slot

3. STATUS light:  Lights in conjunction with beeping alarm to indicate transitions and warnings.
4. Data card slot:  For future upgrades via a data card. The slot contains a plastic filler card for protection.
