Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Air Bag Control Unit (SDM) | Under center floor console. |
| Anti-Theft Control Module | Below center floor console. |

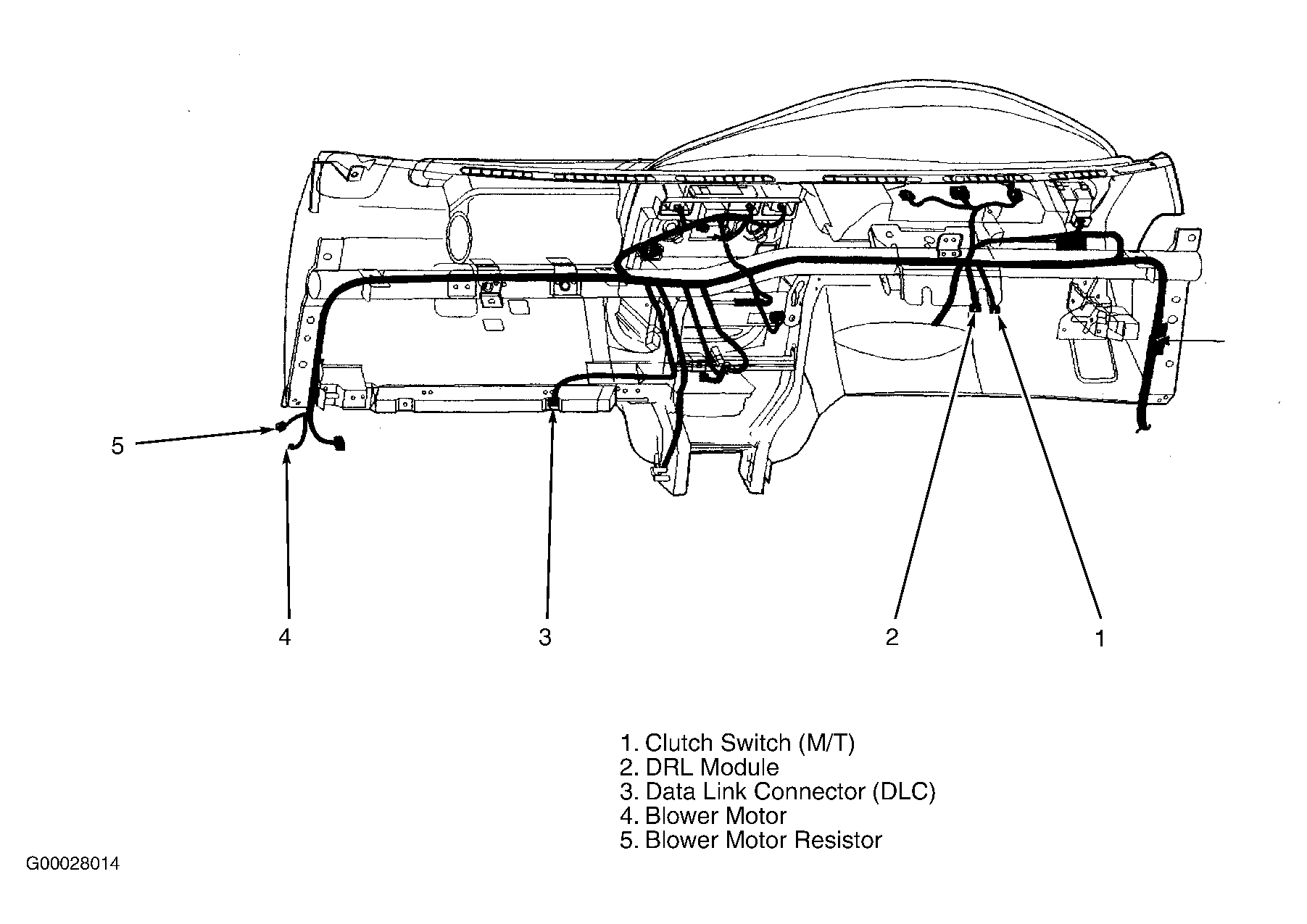

| DRL Module | Behind left side of dash. See Figure . |

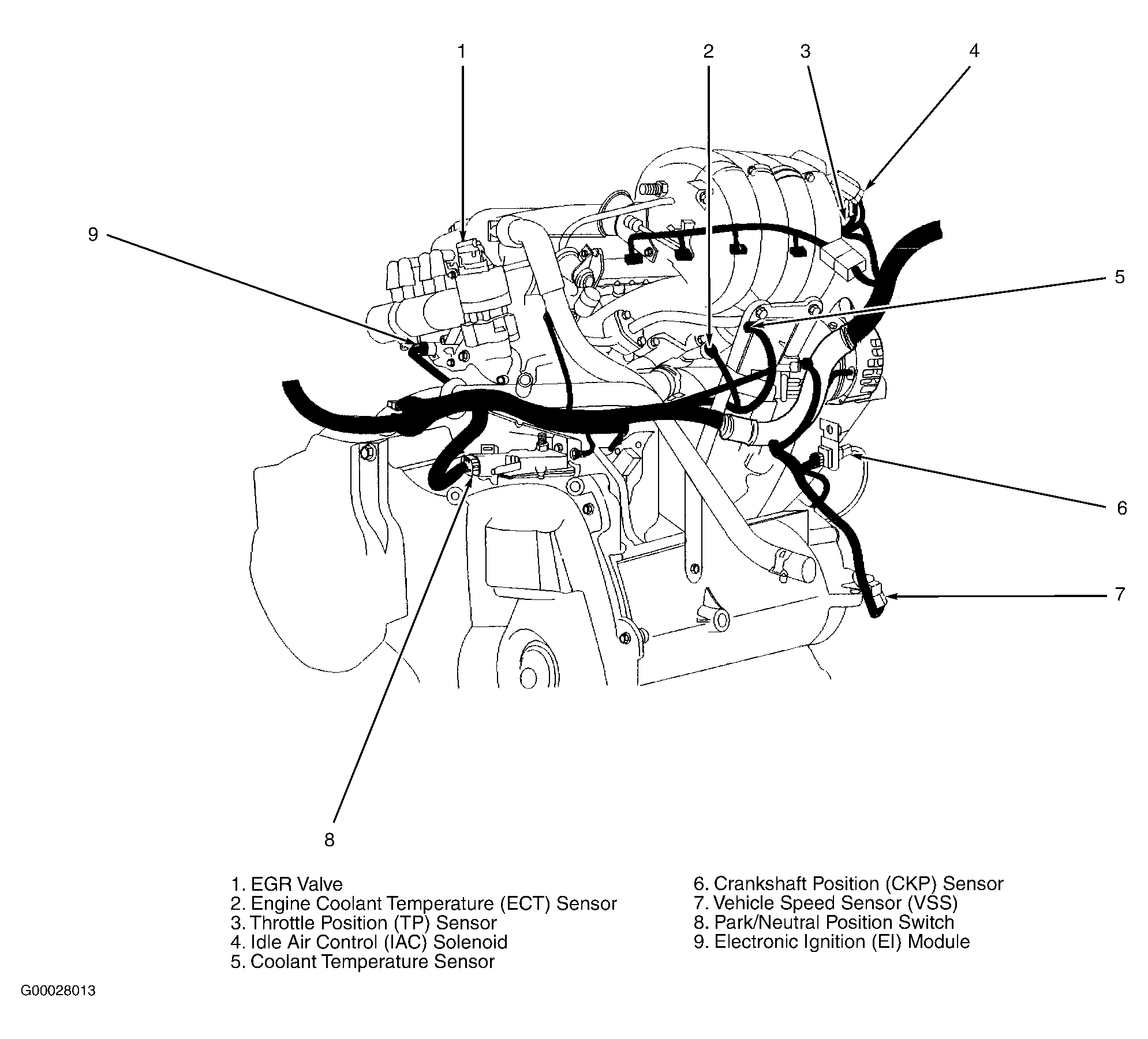

| EGR Valve | On top rear of engine. See Figure . |
| Electronic Brake Control Module (EBCM) | At left rear corner of engine compartment. |
| Electronic Ignition (EI) Module | On rear of cylinder head. See Figure . |
| Powertrain Control Module (PCM) | Under right front seat. |
