DTC C0245: Wheel Speed Sensor Frequency Error

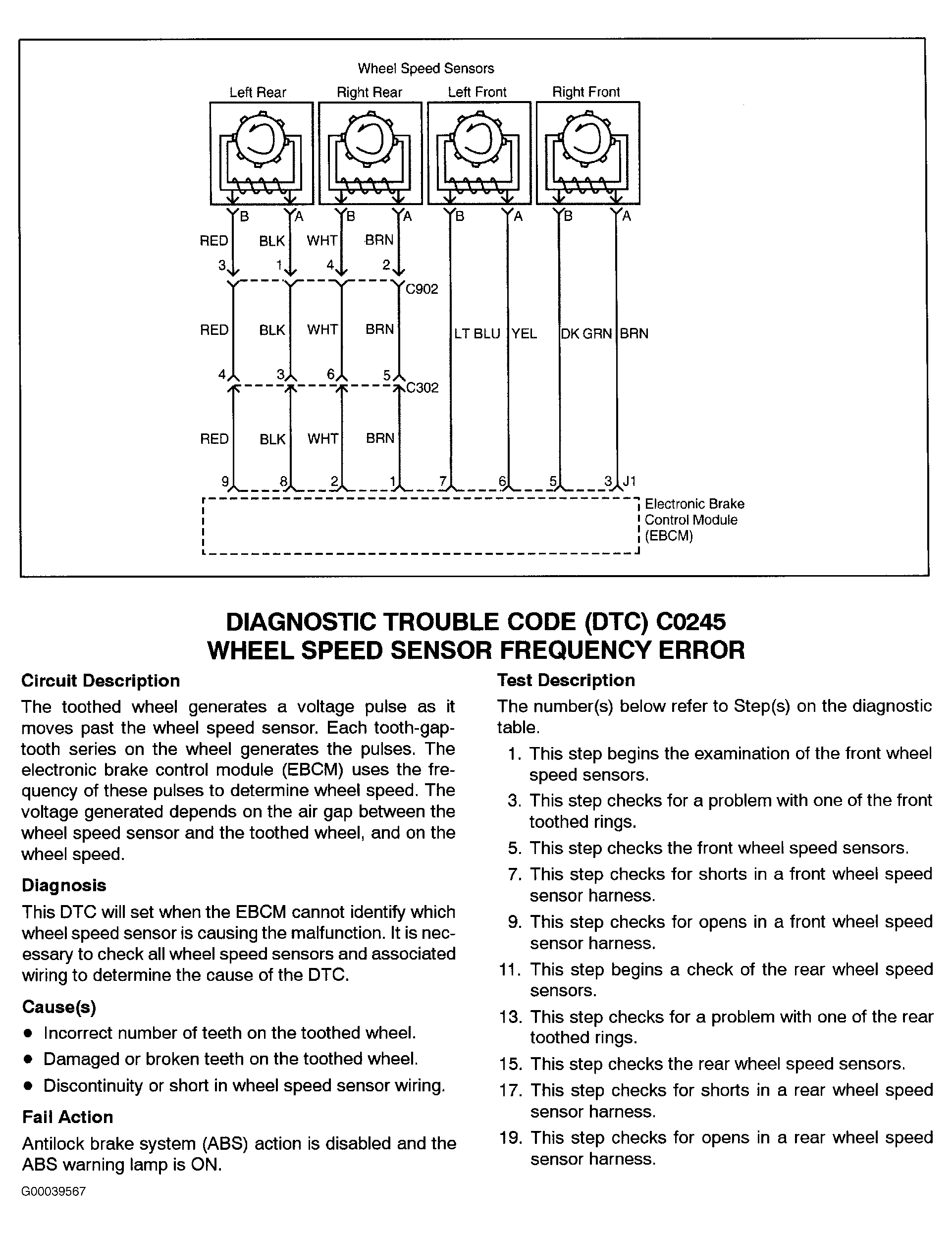

Fig 1: DTC C0245: Wheel Speed Sensor Frequency Error (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

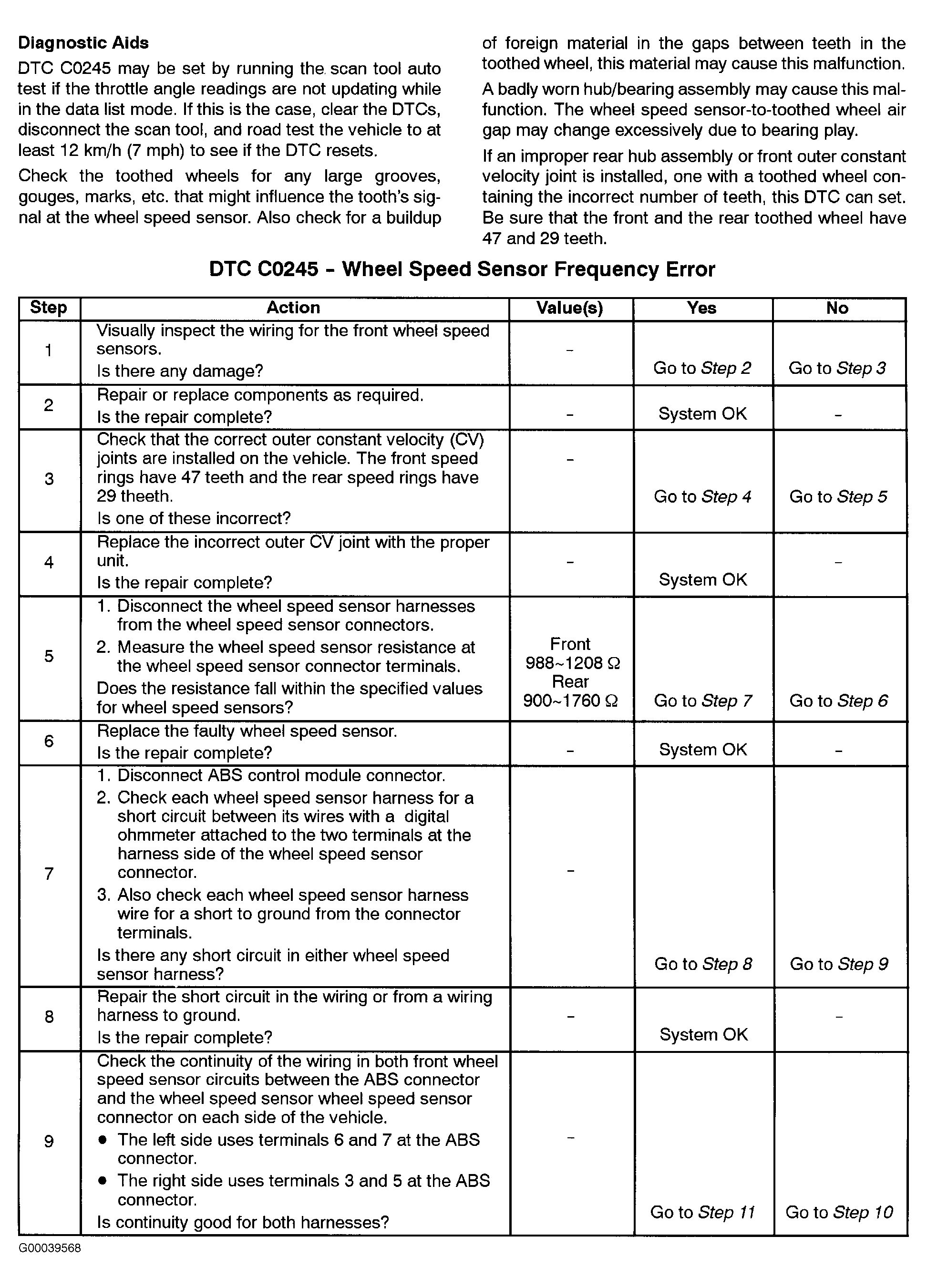

Fig 2: DTC C0245: Wheel Speed Sensor Frequency Error - Steps 1-9 (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

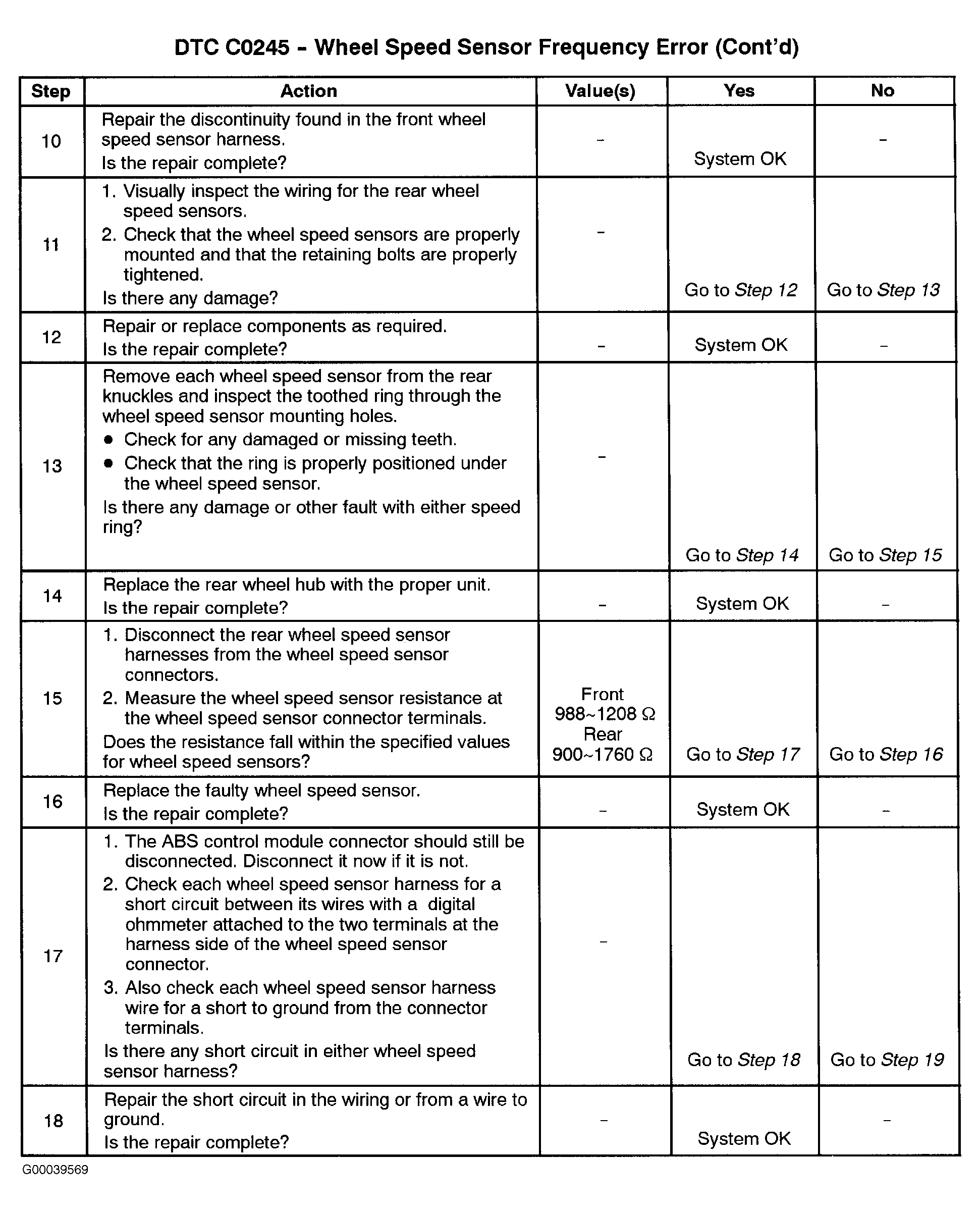

Fig 3: DTC C0245: Wheel Speed Sensor Frequency Error - Steps 10-18 (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

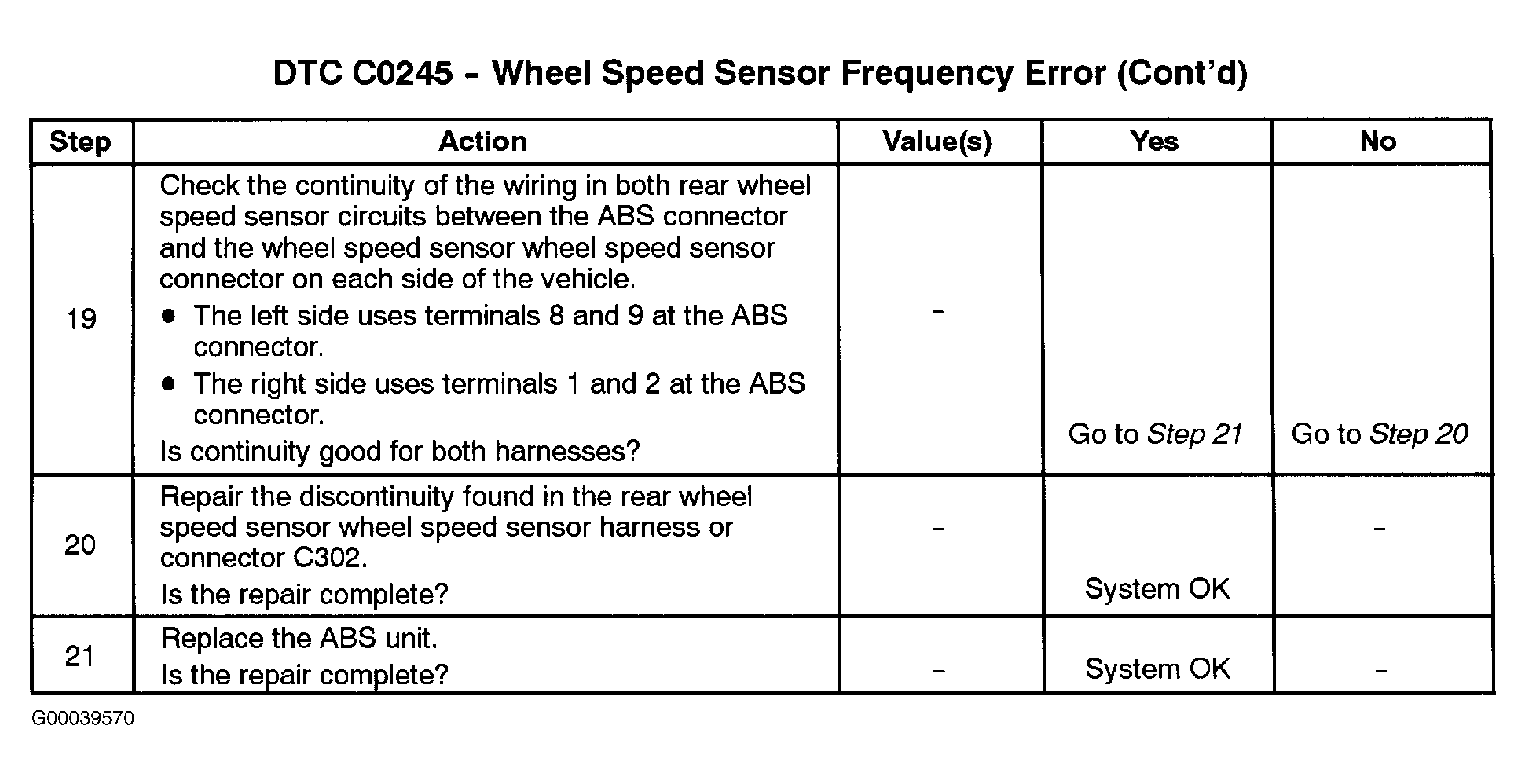

Fig 4: DTC C0245: Wheel Speed Sensor Frequency Error - Steps 19-21 (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
