Wiring Diagrams

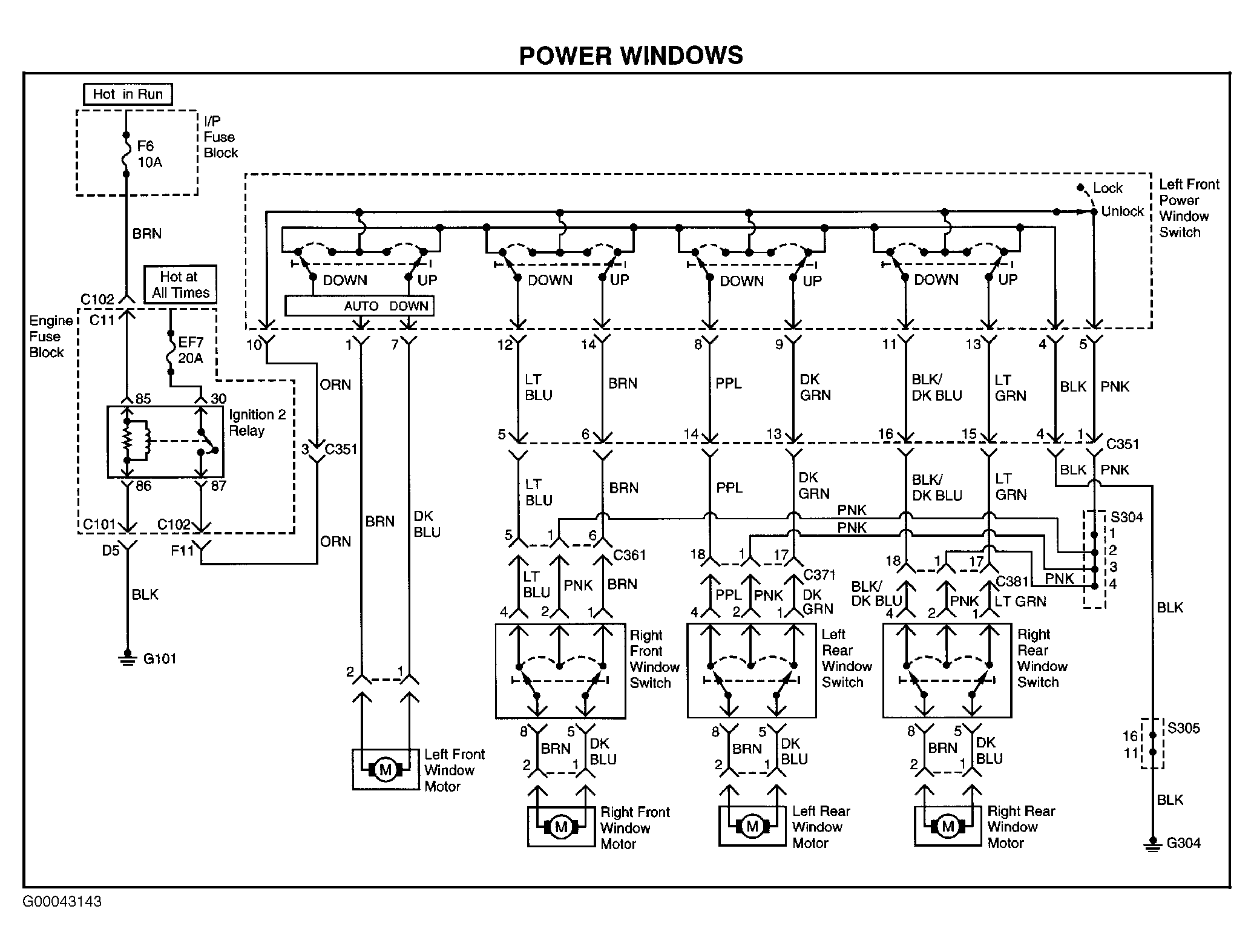

Fig 1: Power Windows Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.

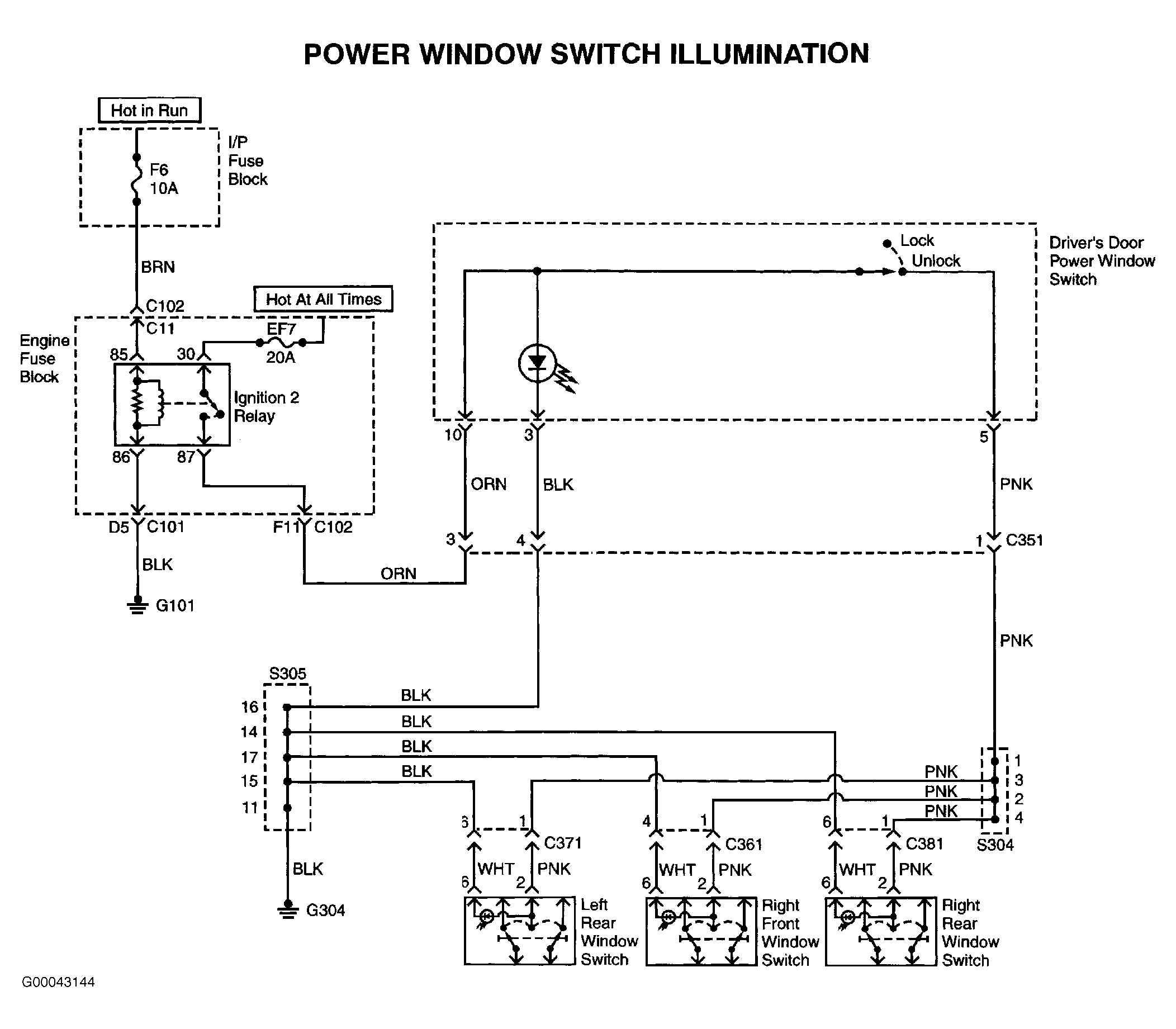

Fig 2: Power Window Switch Illumination Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.

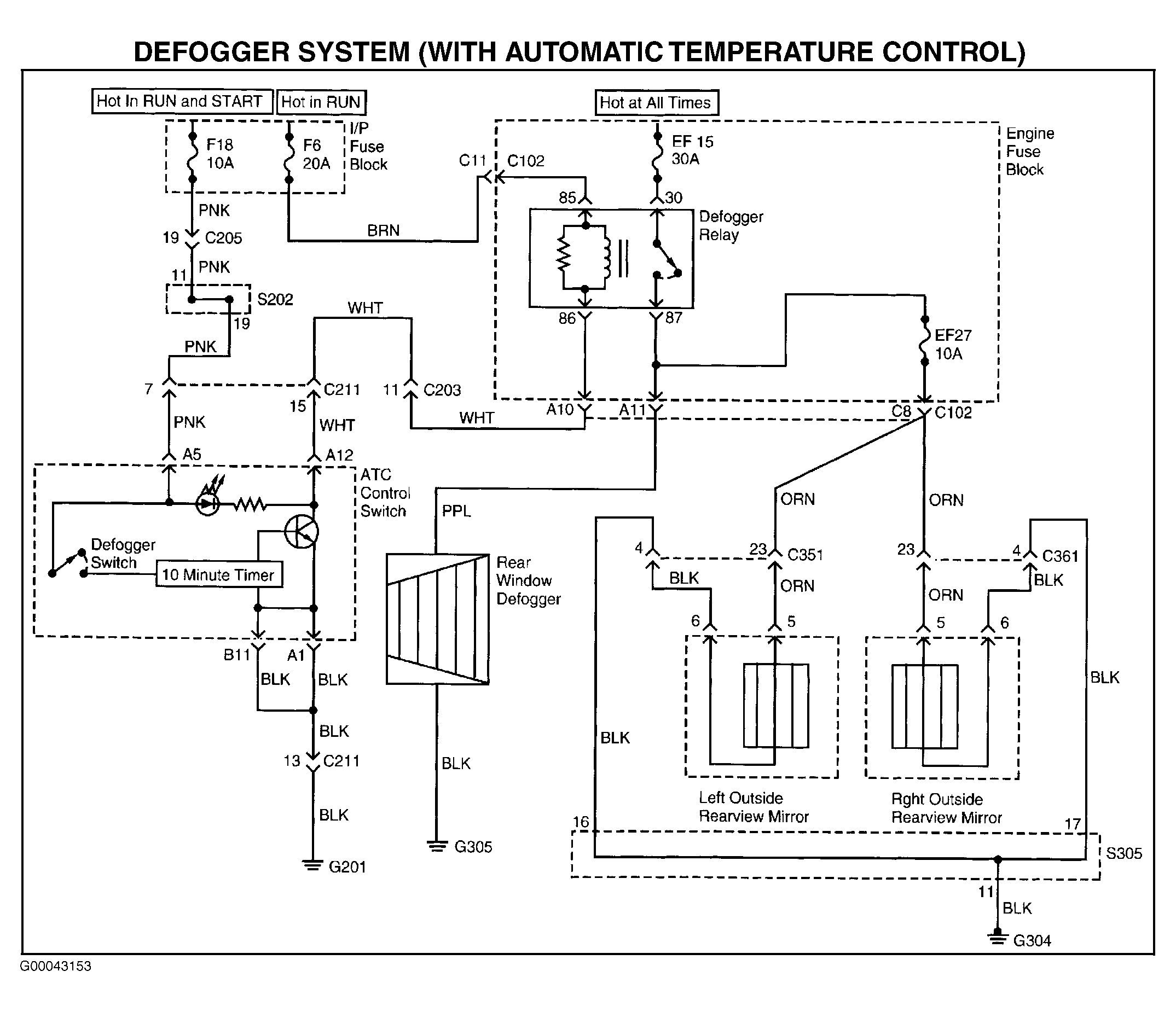

Fig 3: Defogger System (With Automatic Temperature Control) Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.
