Steering Wheel Rotation Sensor: Removal

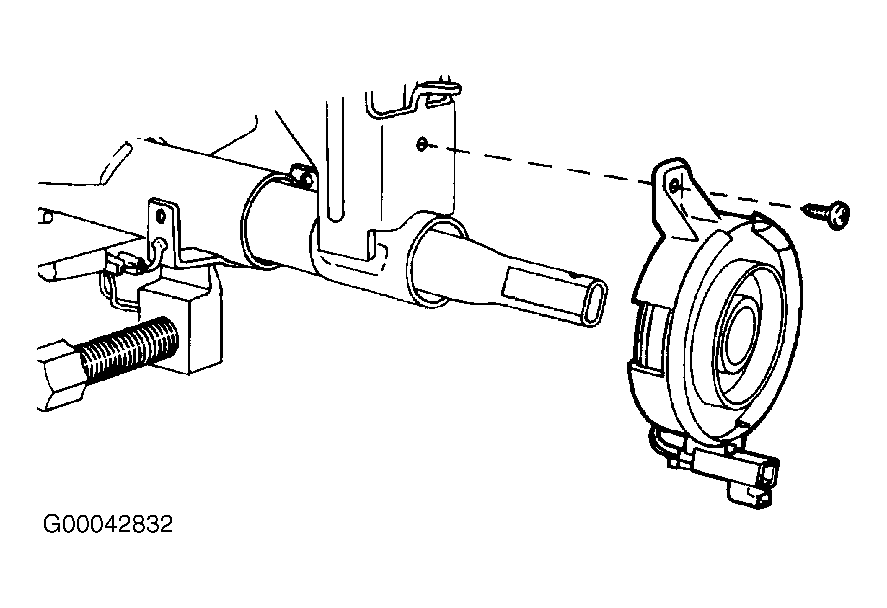

- Disconnect negative battery cable. Remove upper and lower instrument trim panels. Disconnect steering wheel rotation sensor electrical connector. Remove intermediate shaft from steering column to allow removal of steering wheel rotation sensor. See Fig 1
.
- Remove retaining screw from steering wheel rotation sensor. Remove steering wheel rotation sensor.
Courtesy of DAEWOO MOTOR AMERICA, INC.
