EBCM Terminal Identification

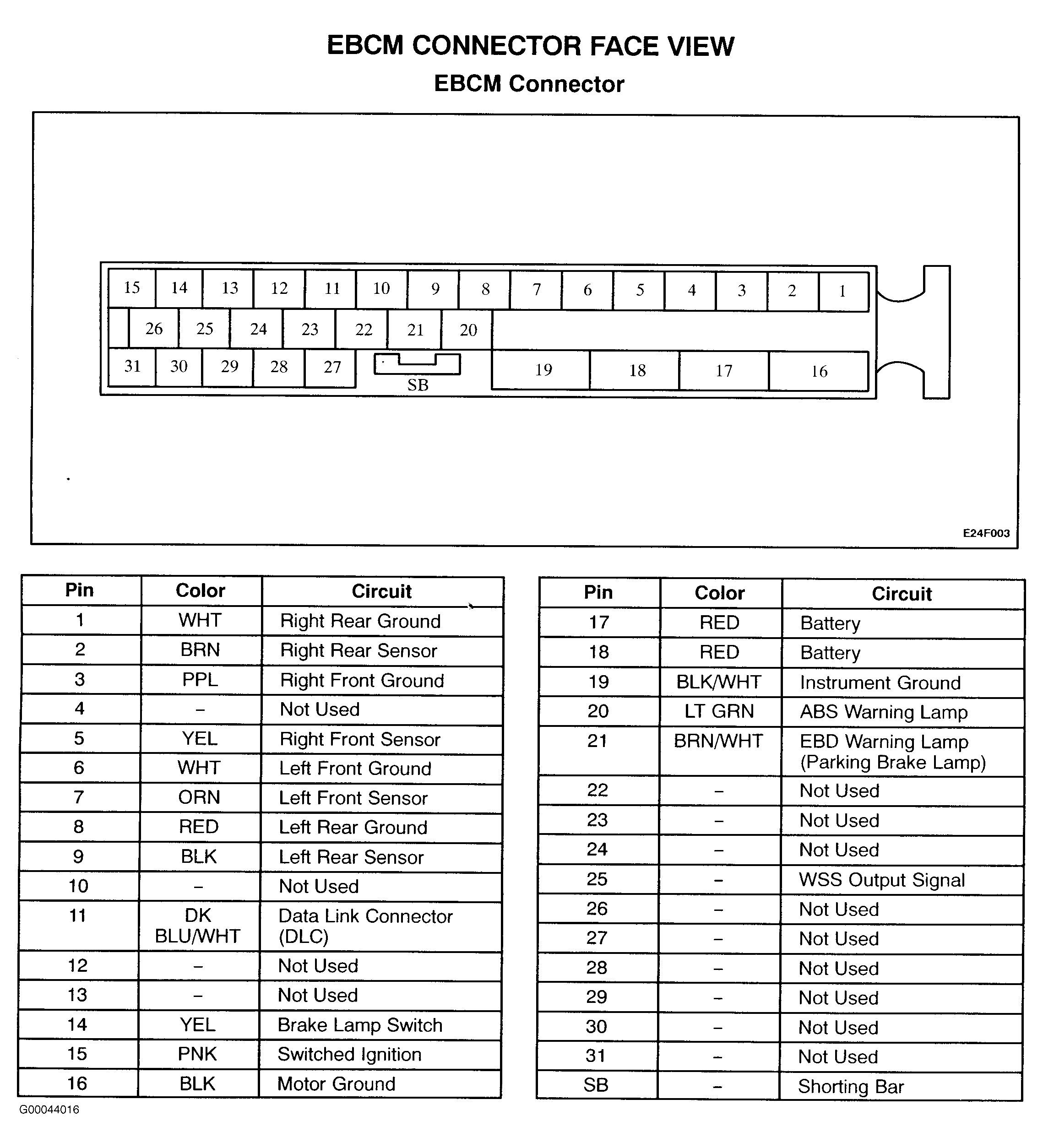

Fig 1: EBCM Connector View
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
