Ignition System Check

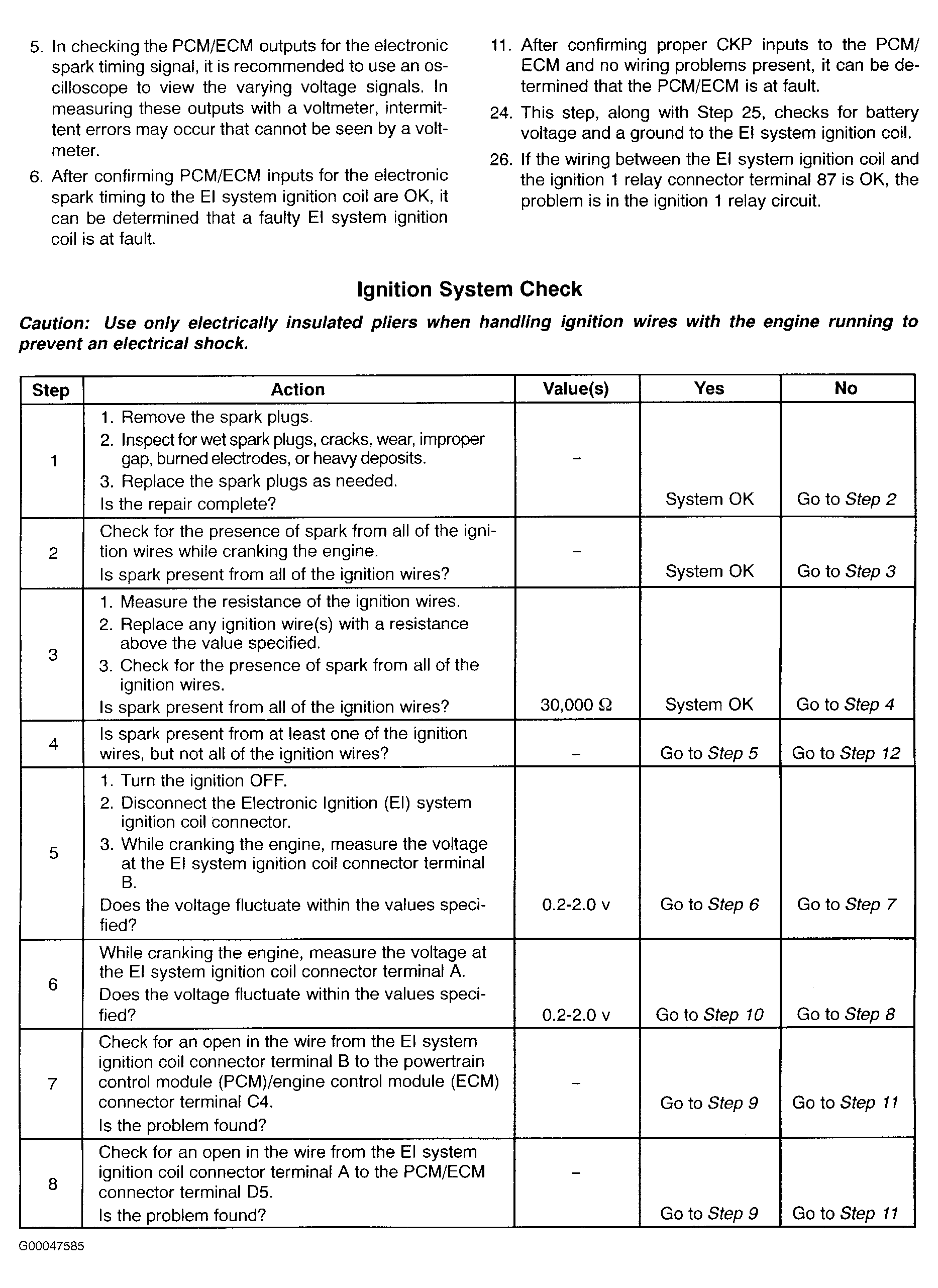

Fig 1: Ignition System Check (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

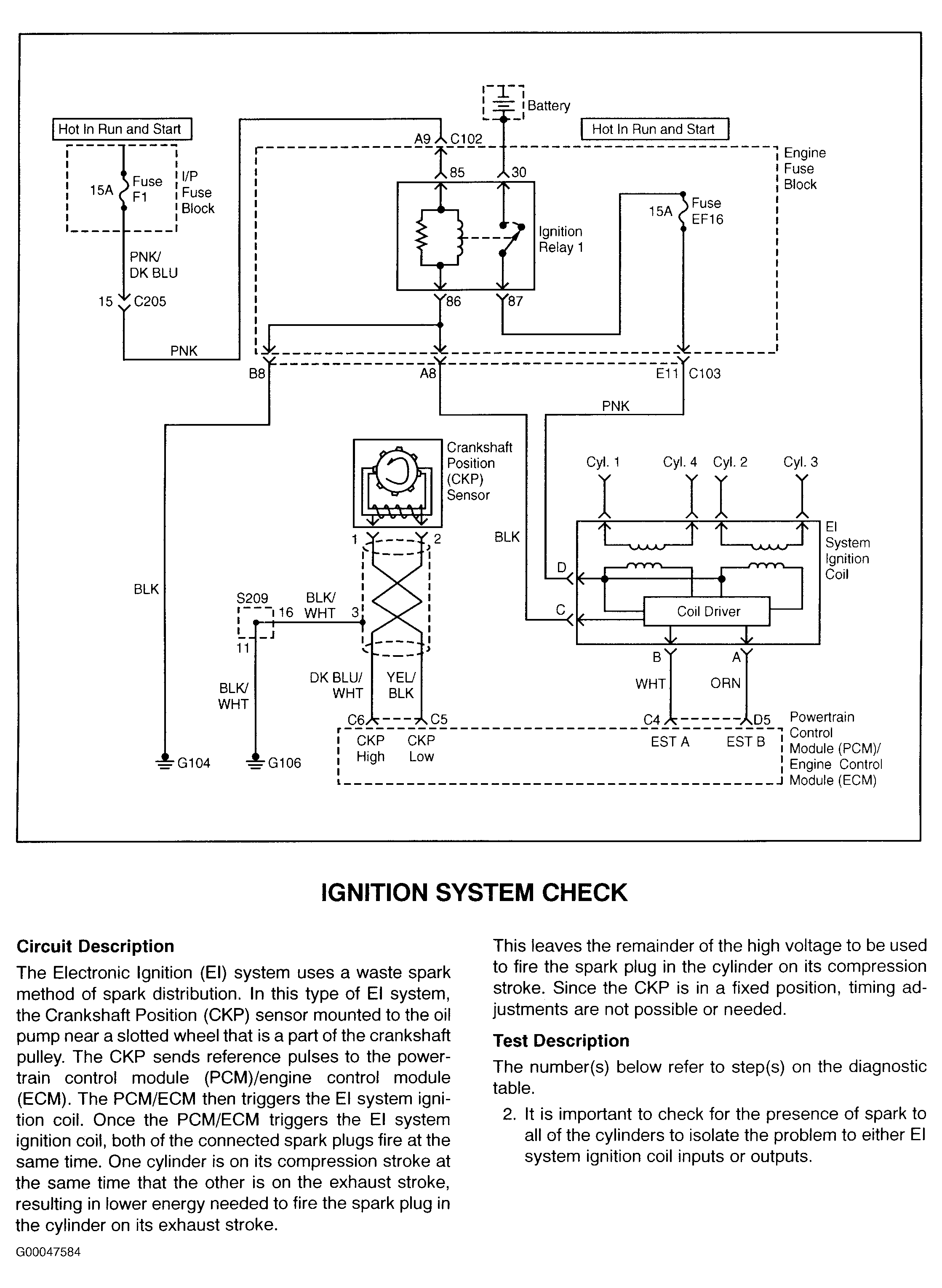

Fig 2: Ignition System Check (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

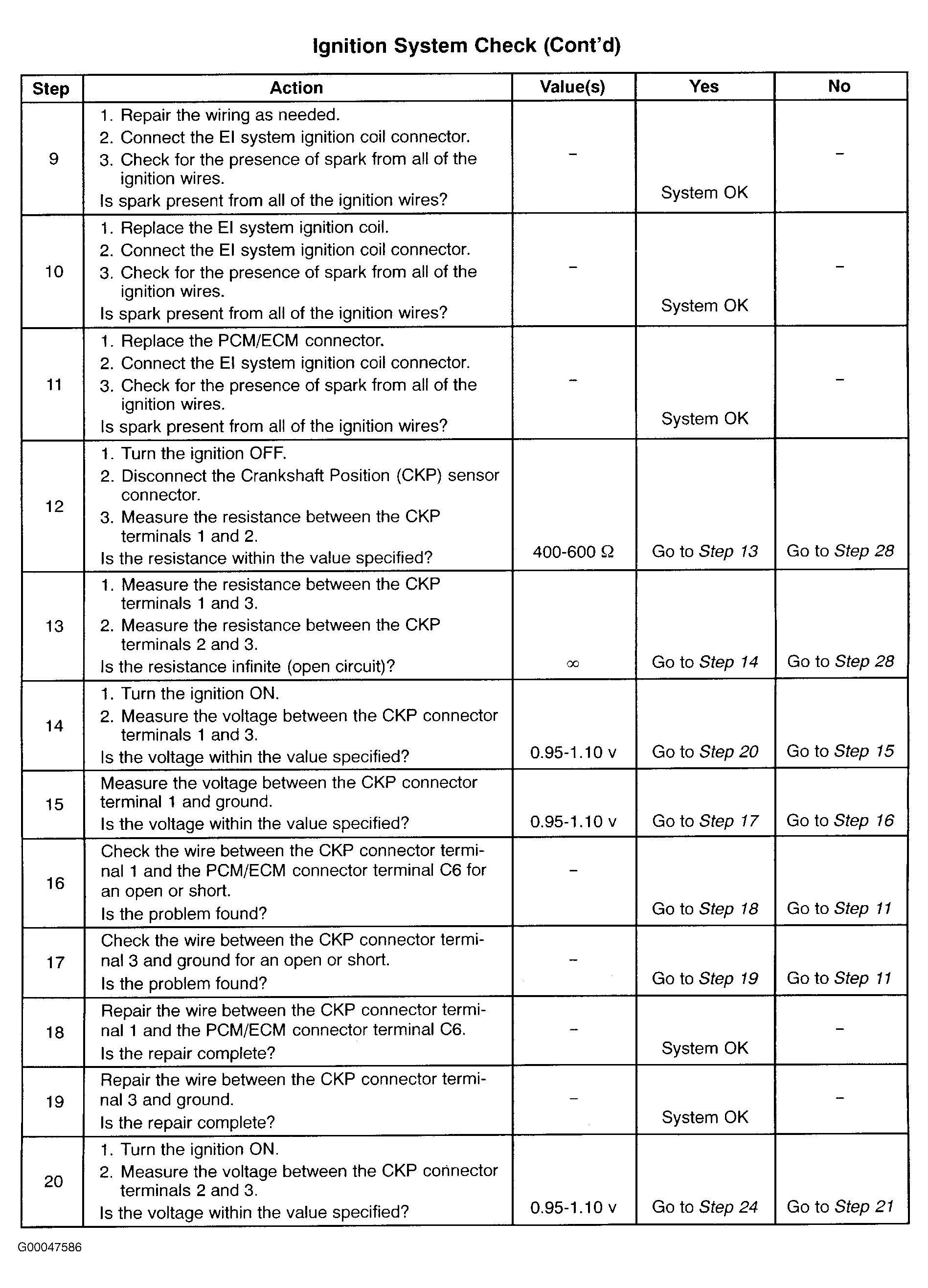

Fig 3: Ignition System Check (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

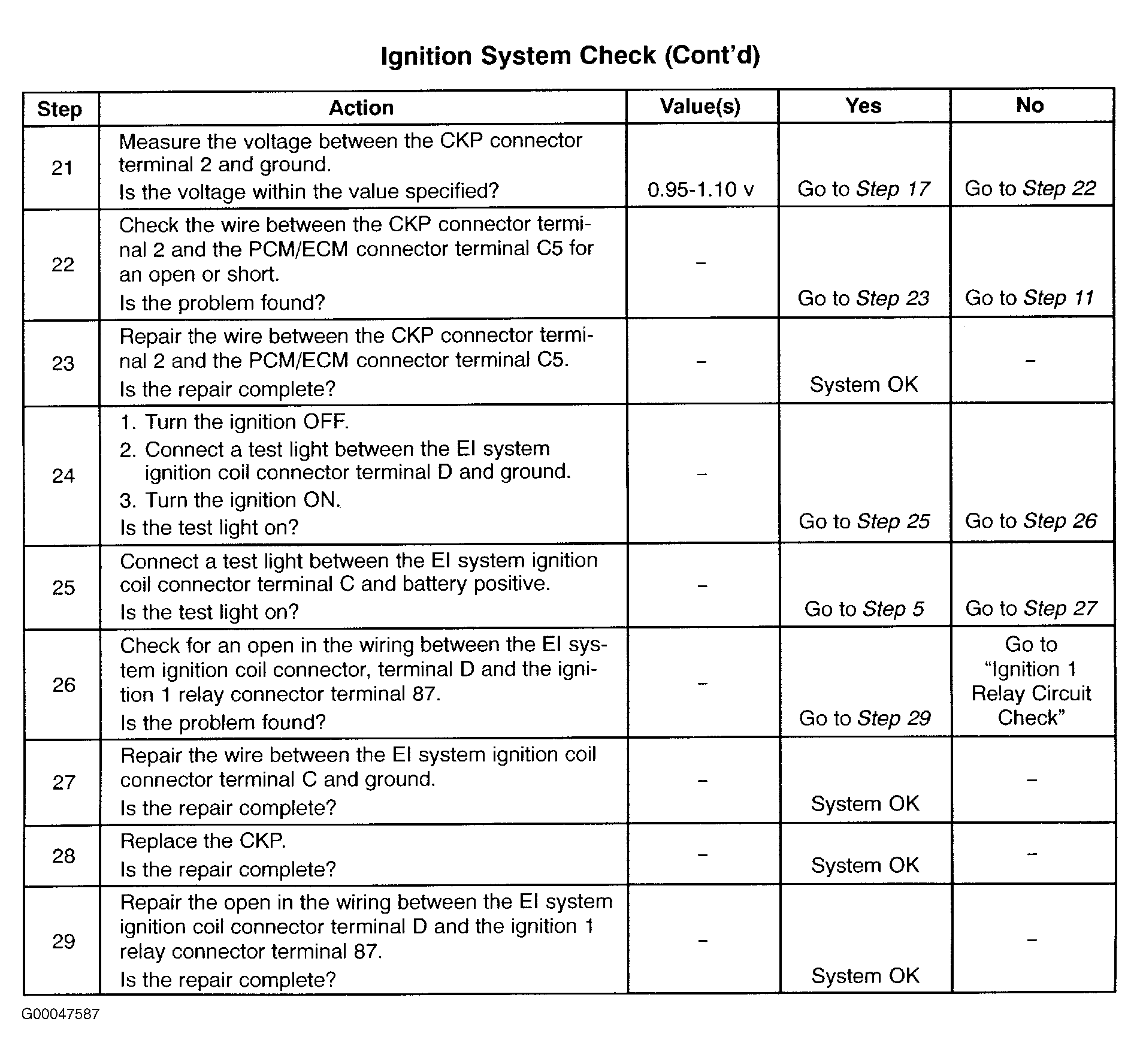

Fig 4: Ignition System Check (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
