Vehicle Speed Sensor: Testing and Inspection
With ECU test harness installed voltage between terminals 26 and 39 on engines should pulse from zero to battery voltage between terminals 8 and 39.Perform Speed sensor circuit test.

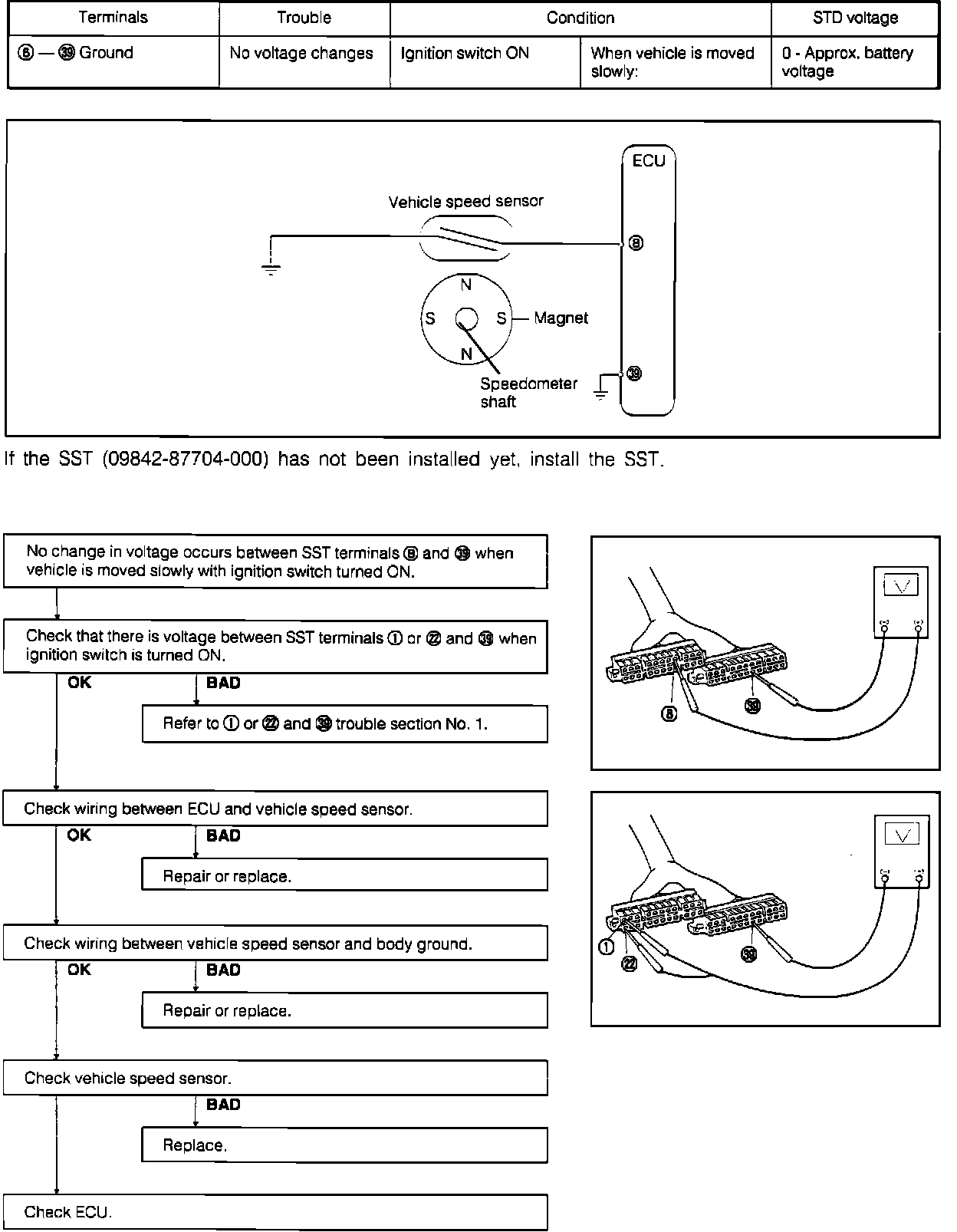

Fig. 61 ECU System Diagnosis, Vehicle Speed Sensor Check:
