Engine Control Module: Locations

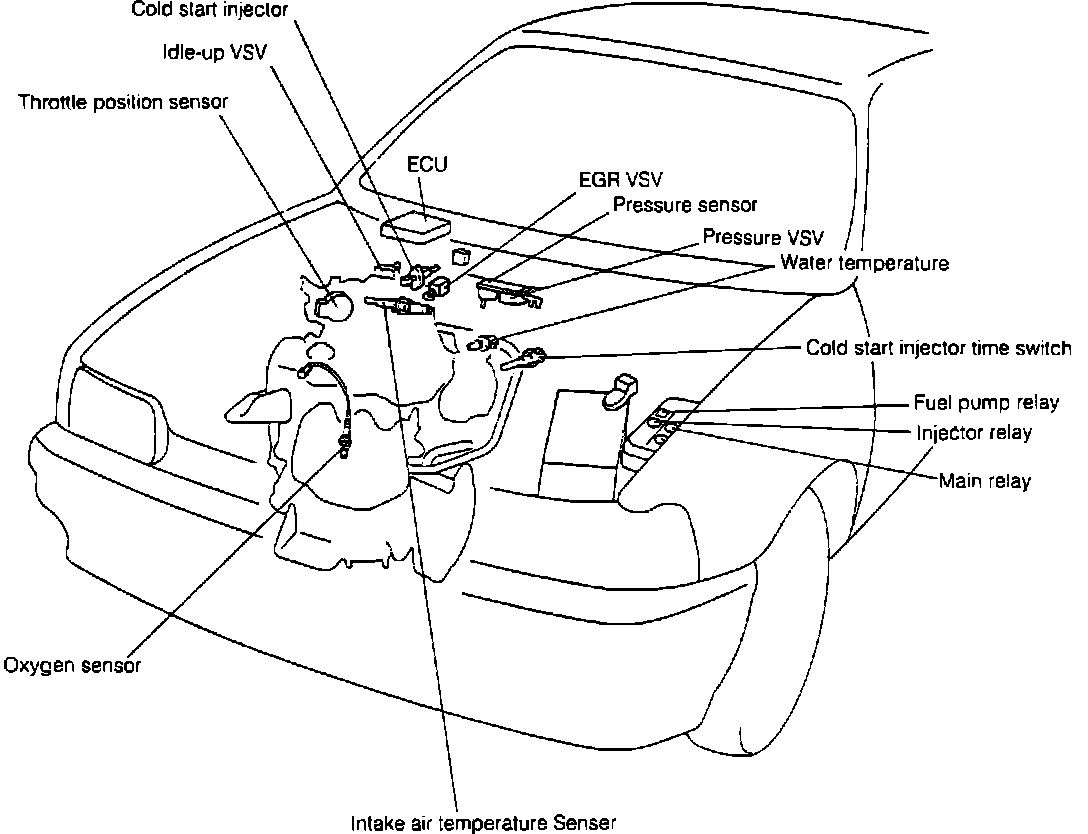

EFI Control System Component Location.:




Switches & Relay Locations:




RH Side Of I/P

Applicable to: 1.0L/3-60.6
