Fuel Cutoff

When ignition is turned on, solenoid is energized and allows fuel to flow into carburetor. When ignition switch off, solenoid is de-energized allowing spring pressure to seat needle and stop fuel flow.

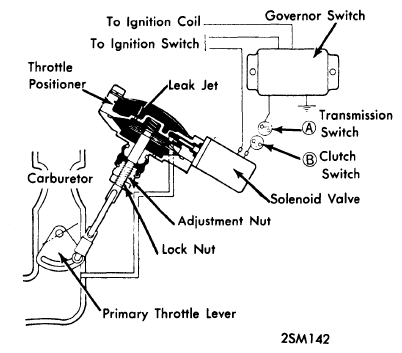

Fig 1: Throttle Positioner Components (Except 1973)
G09354990Courtesy of CHRYSLER GROUP, LLC
