Motor Switch

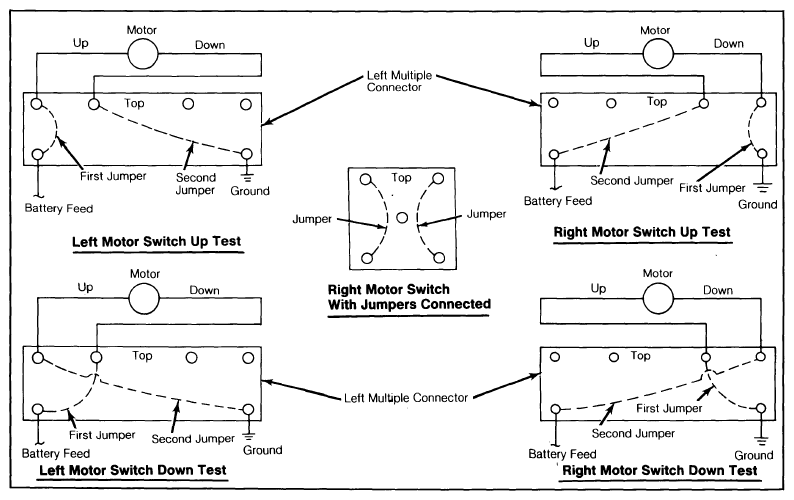

  1. Connect 1 lead of jumper wire to battery lead and other lead to "UP" terminal of left multiple connector. See  Figure .  Connect a second jumper wire with 1 lead to "DOWN" terminal of switch. Attach other lead to ground terminal. Connect 2 jumper wires to right motor switch connector to operate switch.
  2. If motor operates, voltage to motor is okay. Install switch to multiple connector and operate switch. If motor fails to operate, replace switch body. Test each switch.
  3. Connect 1 lead of jumper wire to battery terminal, and other lead to "DOWN" terminal of switch. Connect second jumper wire with 1 lead to "UP" terminal, and other lead to ground terminal. Connect 2 jumper wires to right motor switch connector to operate switch.
  4. Test results are the same as in step 2). If motor fails to run, perform Motor Lift Test.
