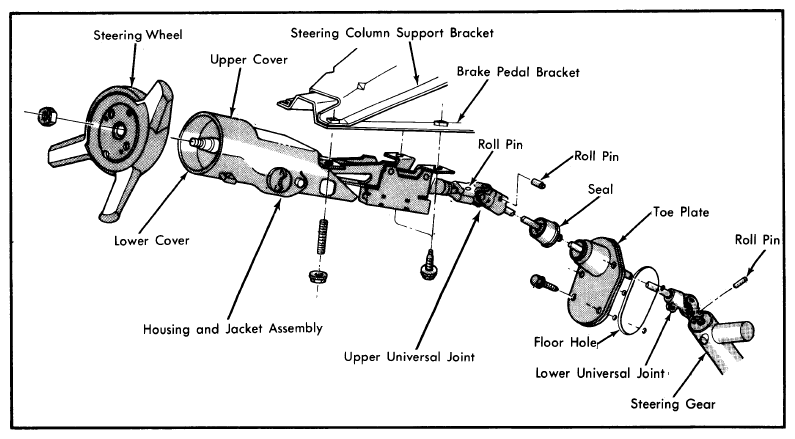

Disassembly & Reassembly: Disassembly: Reassembly
To reassemble, reverse disassembly procedure and note the following: Lubricate all wear surfaces with chassis lube prior to assembly. Check operation of all switches and lock cylinder after reassembly. On column shift models, check operation of shifter.
TIGHTENING SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |
|---|---|---|
| Steering Wheel Nut | 45 (61) | |
| Column Support Bracket Nut | ||
| Rear Wheel Drive Models | 17 (23) | |
| Front Wheel Drive Models | 105 INCH Lbs. (12) | |
