Ignition Control Module: Locations

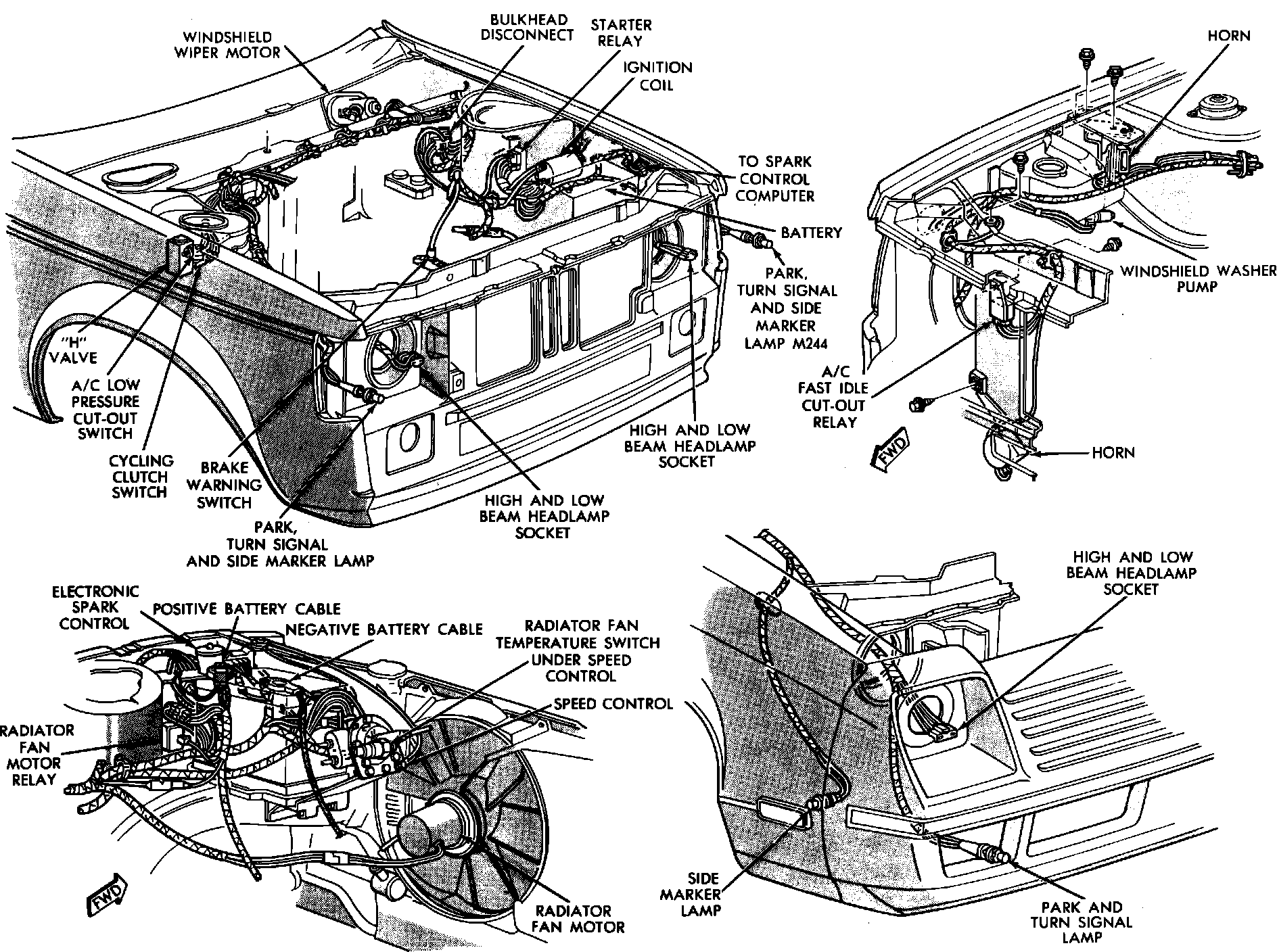

Engine Compartment Electrical Components.:




Front LH Corner Of Engine Compartment

Applicable to: 1981-82
