Ignition System: Description: Notes

The Electronic Spark Control (ESC) system is governed by a Spark Control Computer (SCC), 7 engine sensors, a specially-calibrated carburetor and, a dual pick-up distributor. The ESC system is designed to burn a lean air/fuel mixture, with a minimum of emissions. See Fig 1.

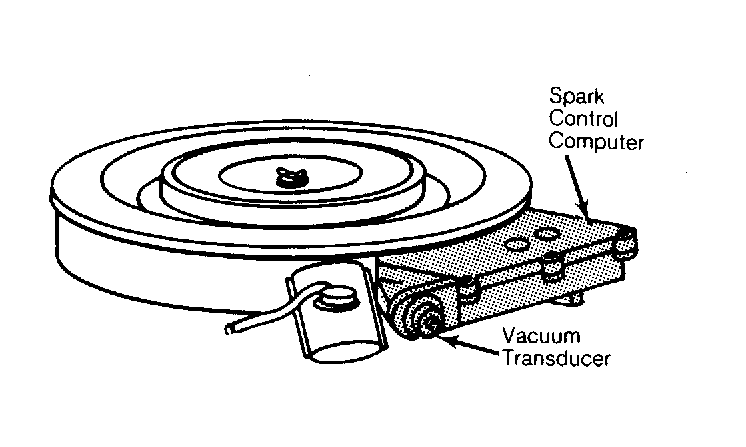

Fig 1: ESC Computer SCC is mounted on air cleaner.
