Single Module Engine Controller (SMEC)

Remove air cleaner duct and disconnect battery. Remove 2 module mounting screws. Disconnect wiring connectors. Remove module assembly. To install, reverse removal procedure.

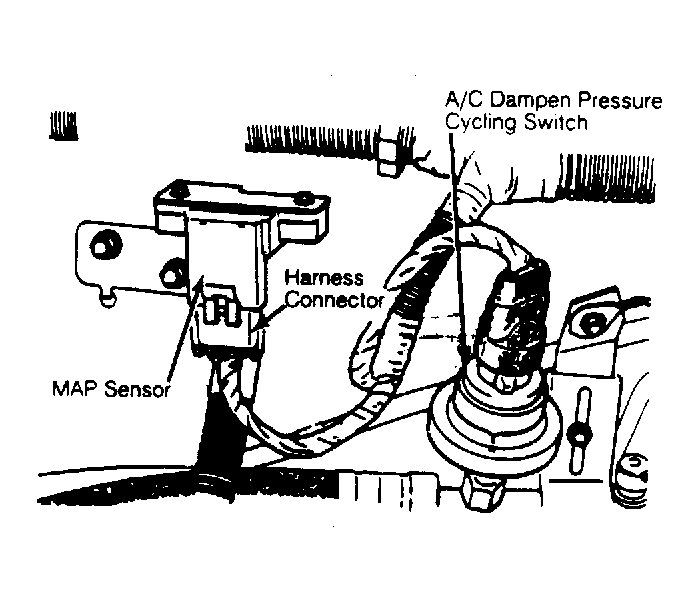

Fig 1: Removing MAPS Sensor

Courtesy of CHRYSLER MOTORS.

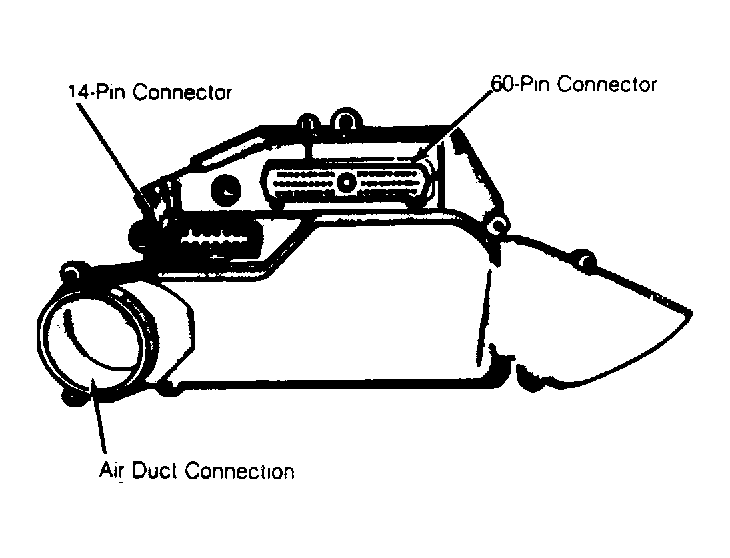

Fig 2: Removing SMEC Assembly

Courtesy of CHRYSLER MOTORS.
