Logic Module (Turbo)

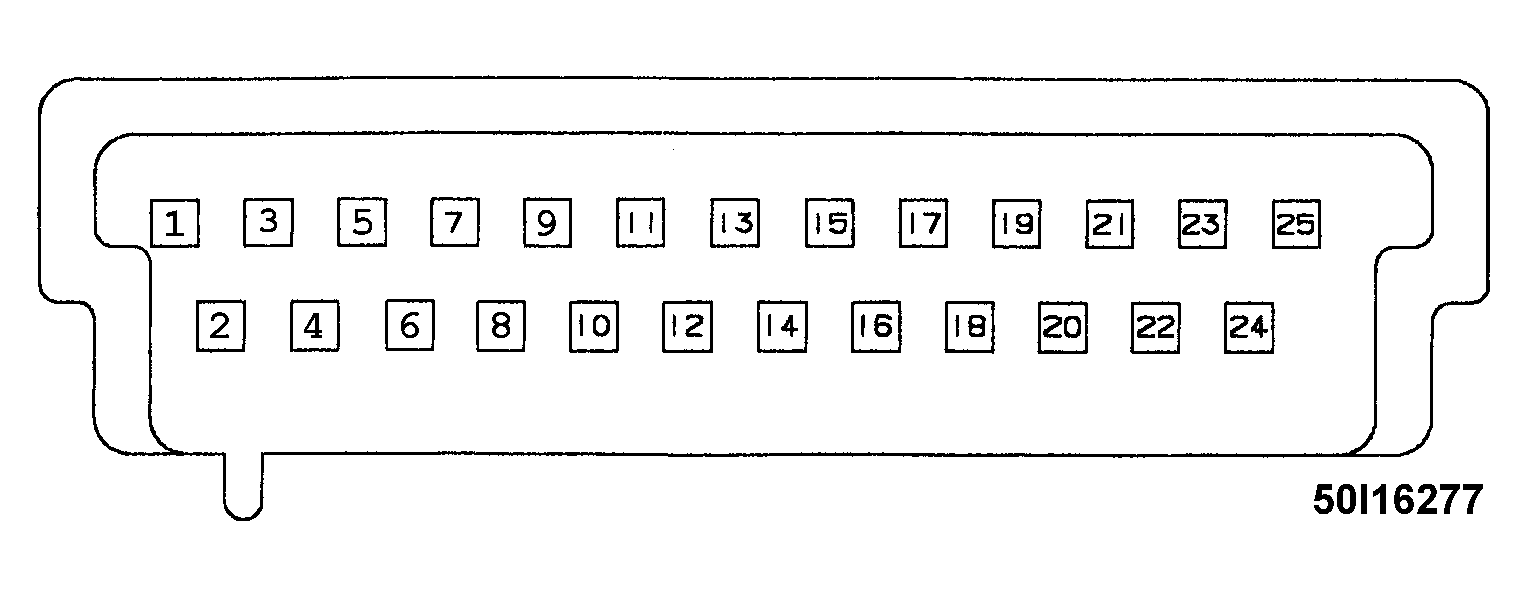

LOGIC MODULE CONNECOTR 1 - TURBO
| Pin (Color) |
Function |
| 1 (Violet/White) |
MAP Sensor Signal |
| 2 (Violet/Yellow) |
Injector Control Signal |
| 3 (Gray/White) |
Injector On Signal |
| 4 (Black/Pink) |
Power Loss Lamp |
| 5 (Dark Green/Orange) |
Voltage Regulation Signal |
| 6 (Yellow) |
Anti Dwell Signal |
| 7 (Dark Blue) |
Ignition Feed (Fuse J2) |
| 8 (Dark Blue) |
Ignition Feed (Fuse J2) |
| 9 (White/Orange) |
Speed Sensor |
| 10 (Gray) |
Distributor Pick-Up Signal |
| 11 (Pink) |
Serial Communication Interface (Transmit) |
| 12 (Gray/Light Blue) |
Tachometer Signal |
| 13 (Light Green) |
Serial Communication Interface (Receive) |
| 14 (Light Blue) |
Fuel Monitor Output Signal |
| 15 (Light Blue) |
BARB-READ Solenoid Signal |
| 16 (Not Used) |
Not Used |
| 17 (Dark Blue/Yellow) |
Auto Shut Down Signal |
| 18 (Gray/Red) |
Automatic Idle Speed Open Signal |
| 19 (Light Green) |
Waste Gate Solenoid Signal |
| 20 (Not Used) |
Not Used |
| 21 (Dark Blue/Pink) |
Radiator Fan Relay |
| 22 (Brown) |
Automatic Idle Speed Closed Signal |
| 23 (Orange) |
7.5 Volt Supply From Power Module |
| 24 (Black) |
Signal Ground |
| 25 (Black/Light Blue) |
Signal Ground |
LOGIC MODULE CONNECOTR 2 - TURBO
| Pin (Color) |
Function |
| 1 (Orange/White) |
5 Volt Supply For Throttle Sensor |
| 2 (Red/White) |
Direct Battery Feed |
| 3 (Dark Blue/Orange) |
Wide Open Throttle A/C Cutout Signal |
| 4 (Tan/White) |
Speed Control |
| 5 (Gray/Yellow) |
Exhaust Gas Recirculation Solenoid Signal |
| 6 (Light Green/Red) |
Speed Control |
| 7 (Light Blue/Red) |
Power Ground |
| 8 (Light Blue/Red) |
Power Ground |
| 9 (Brown/Red) |
Speed Control |
| 10 (White) |
Speed Control |
| 11 (Brown) |
Air Conditioning Clutch Signal |
| 12 (Brown/Yellow) |
Park/Neutral Switch Signal |
| 13 (White/Pink) |
Brake Switch Signal |
| 14 (Not Used) |
Not Used |
| 15 (Yellow/Red) |
Speed Control |
| 16 (Not Used) |
Not Used |
| 17 (Tan/Yellow) |
Distributor Sync Pickup Signal |
| 18 (Black) |
Oxygen Sensor Signal |
| 19 (Dark Green/Red) |
MAP Sensor Signal |
| 20 (Red/Black) |
Battery Temperature Signal |
| 21 (Orange/Dark Blue) |
Throttle Position Sensor |
| 22 (Red/White) |
Direct Battery Sense |
| 23 (Tan) |
Coolant Tempertaure Sensor Signal |
| 24 (Black/Light Green) |
Detonation Sensor Signal |
| 25 (Black/Red) |
Air Temperature Sensor Signal |
