Power Module (Non-Turbo)

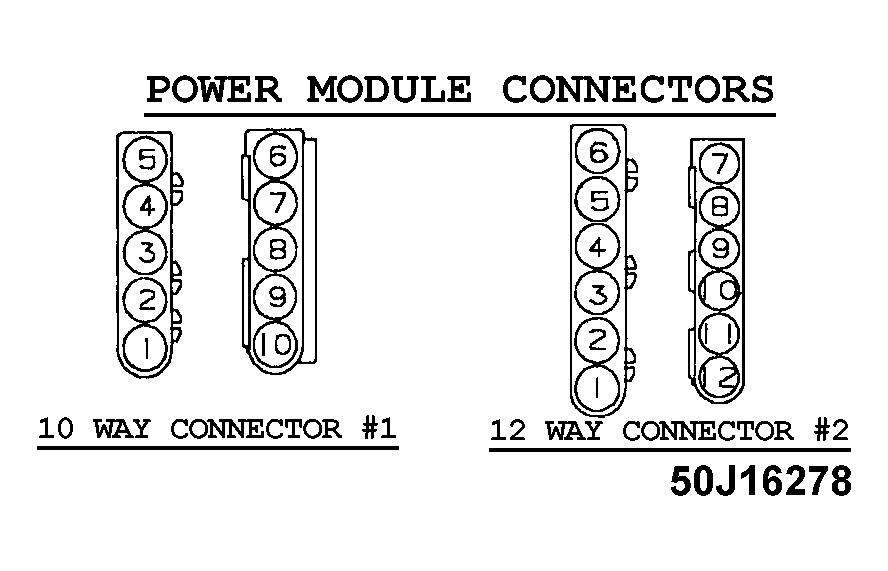

POWER MODULE CONNECTOR IDENTIFICATION - NON-TURBO
| Pin Number (Color) | Function | |
|---|---|---|
| 10 Pin - Connector 1 | ||
| 1 (Black/Yellow) | Ignition Coil | |
| 2 (Dark Blue) | Ignition Switch Supply Voltage | |
| 3 (Dark Blue) | Fused J2 To Power Module | |
| 4 (Pink) | Direct Battery Supply Voltage | |
| 5 (Tan) | Injector | |
| 6 (Dark Green/Black) | Auto Shutdown Relay Supply Voltage | |
| 7 (White) | Injector | |
| 8 (Dark Green) | Alternator Field | |
| 9 (Black) | Power Ground | |
| 10 (Black) | Power Ground | |
| 12 Pin - Connector 2 | ||
| 1 (Violet/Yellow) | Injector Control From Logic Module | |
| 2 (Black/Light Blue) | Sensor Ground To Logic Module | |
| 3 (Red/Black) | Battery Temperature Sensor | |
| 4 | Not Used | |
| 5 (Dk Blu/Yel) | Auto Shutdown Relay Control From Logic Module | |
| 6 (Red/White) | Direct Battery Voltage Feed To Logic Module | |
| 7 | Not Used | |
| 8 | Not Used | |
| 9 | Not Used | |
| 10 (Yellow) | Ignition Control From Logic Module | |
| 11 (Dark Green/Orange) | Alternator Control From Logic Module | |
| 12 (Orange) | 8 Volt Supply To Logic Module | |
