Window Control Switch Test

If failure is in passenger or rear doors, connect jumper wires to that switch connector as shown. See Fig 1 through Fig 5 . Check operation of motor by making jumper connections on left front main switch connector.
If the failure is in the left front door, it is not necessary to disconnect or jump any other switch. If the motor operates using jumper wires, a switch is the cause of the failure. If window motor does not operate using jumper wires, perform MOTOR LIFT TEST .

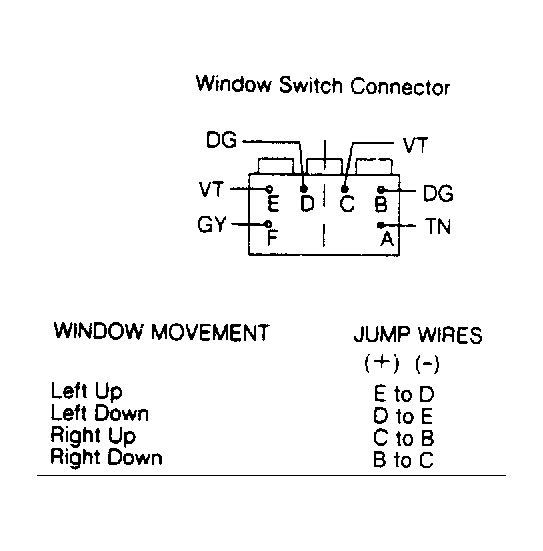

Fig 1: Switch Test Connections For Sundance & Shadow

Courtesy of CHRYSLER MOTORS.

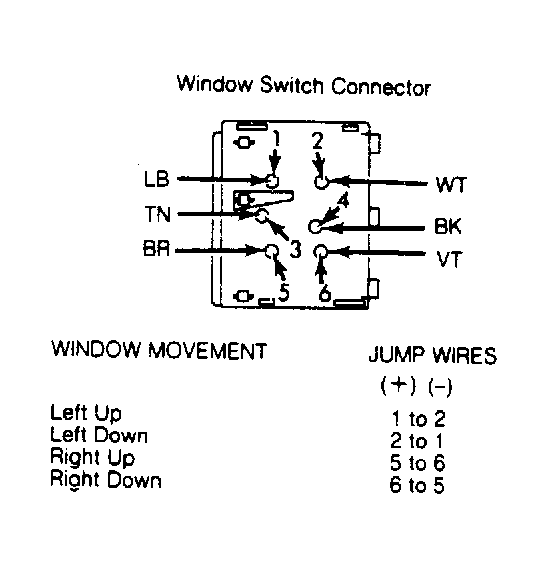

Fig 2: Switch Test Connections For Diplomat Fifth Avenue & Gran Fury

Courtesy of CHRYSLER MOTORS.

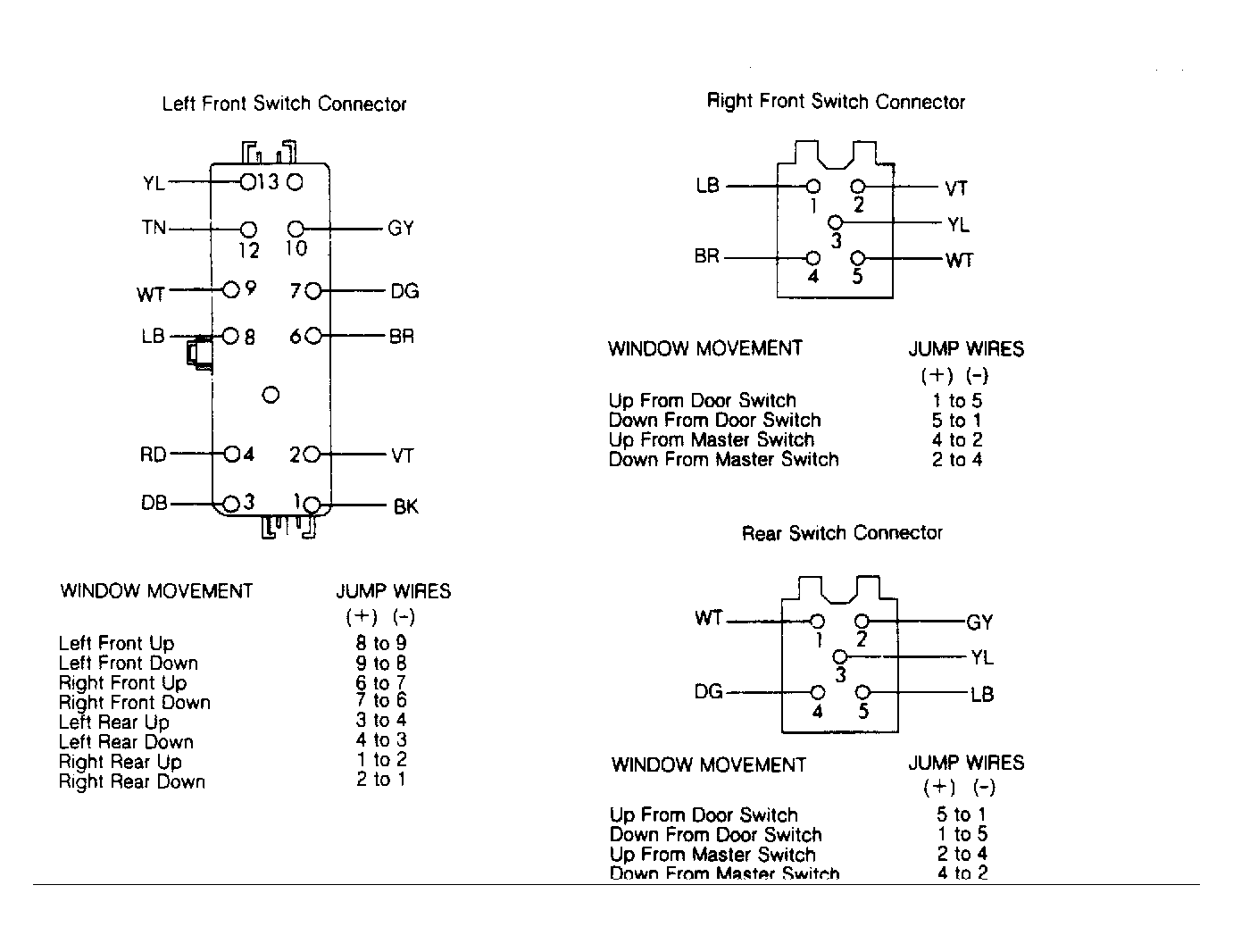

Fig 3: Switch Test Connections For Daytona Daytona Shelby Z & LeBaron 2-Door Coupe

Courtesy of CHRYSLER MOTORS.

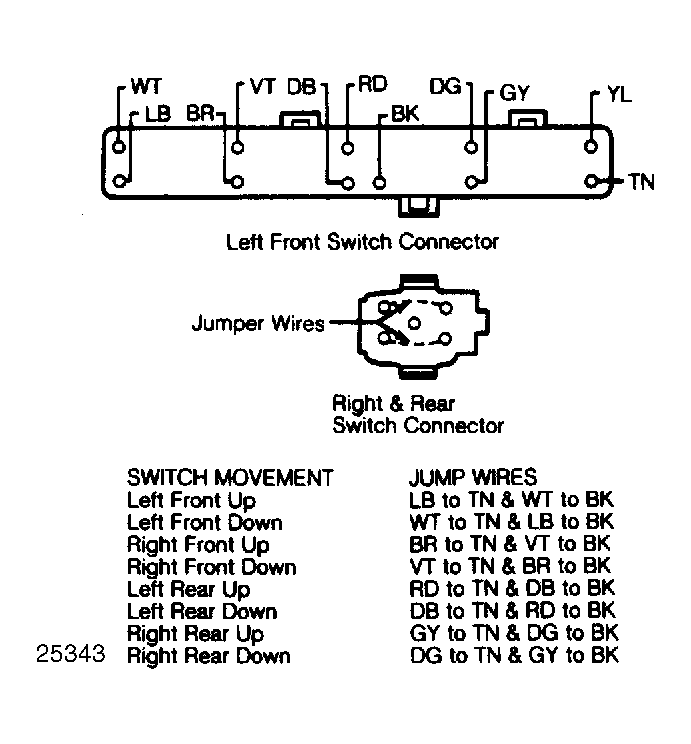

Fig 4: Switch Test Connections For Caravelle, Caravelle SE, LeBaron 4-Door, New Yorker & 600, 600 SE

Courtesy of CHRYSLER MOTORS.

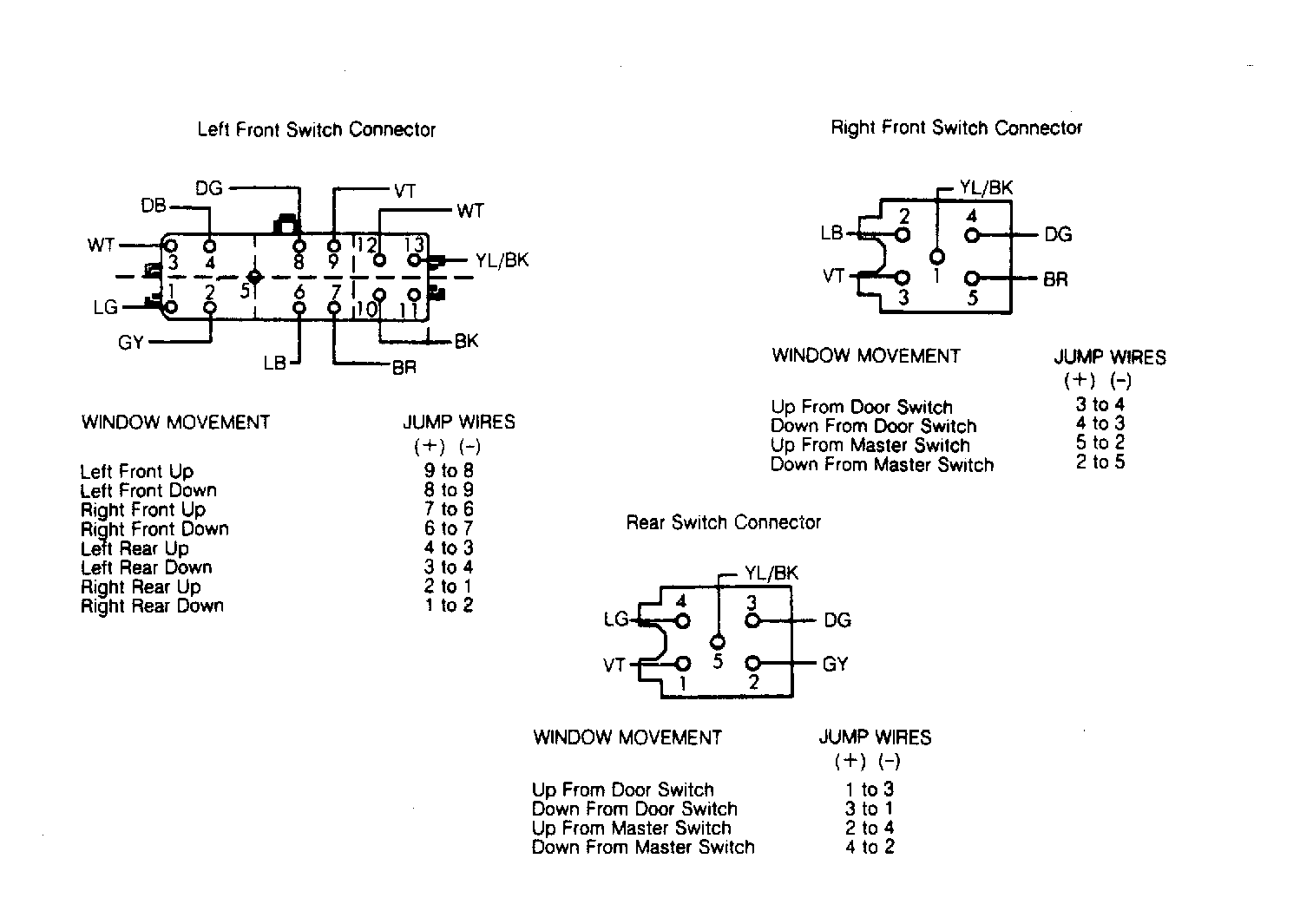

Fig 5: Switch Test Connections For Lancer, Lancer ES & LeBaron GTS

Courtesy of CHRYSLER MOTORS.
