Computers and Control Systems: Locations

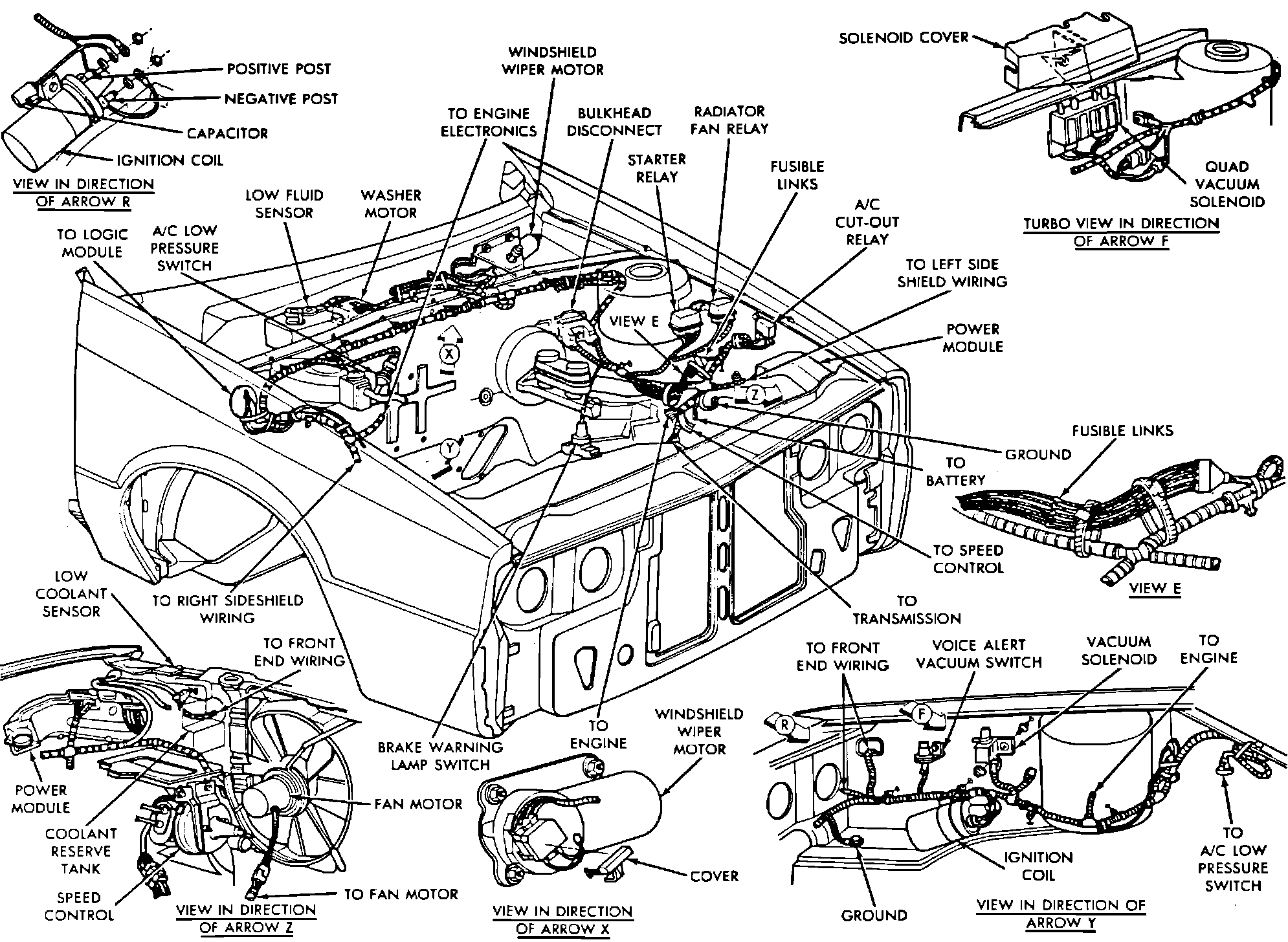

Front end & engine compartment components.:




In LH Fender

Applicable to: 1986-87 Lancer & LeBaron GTS

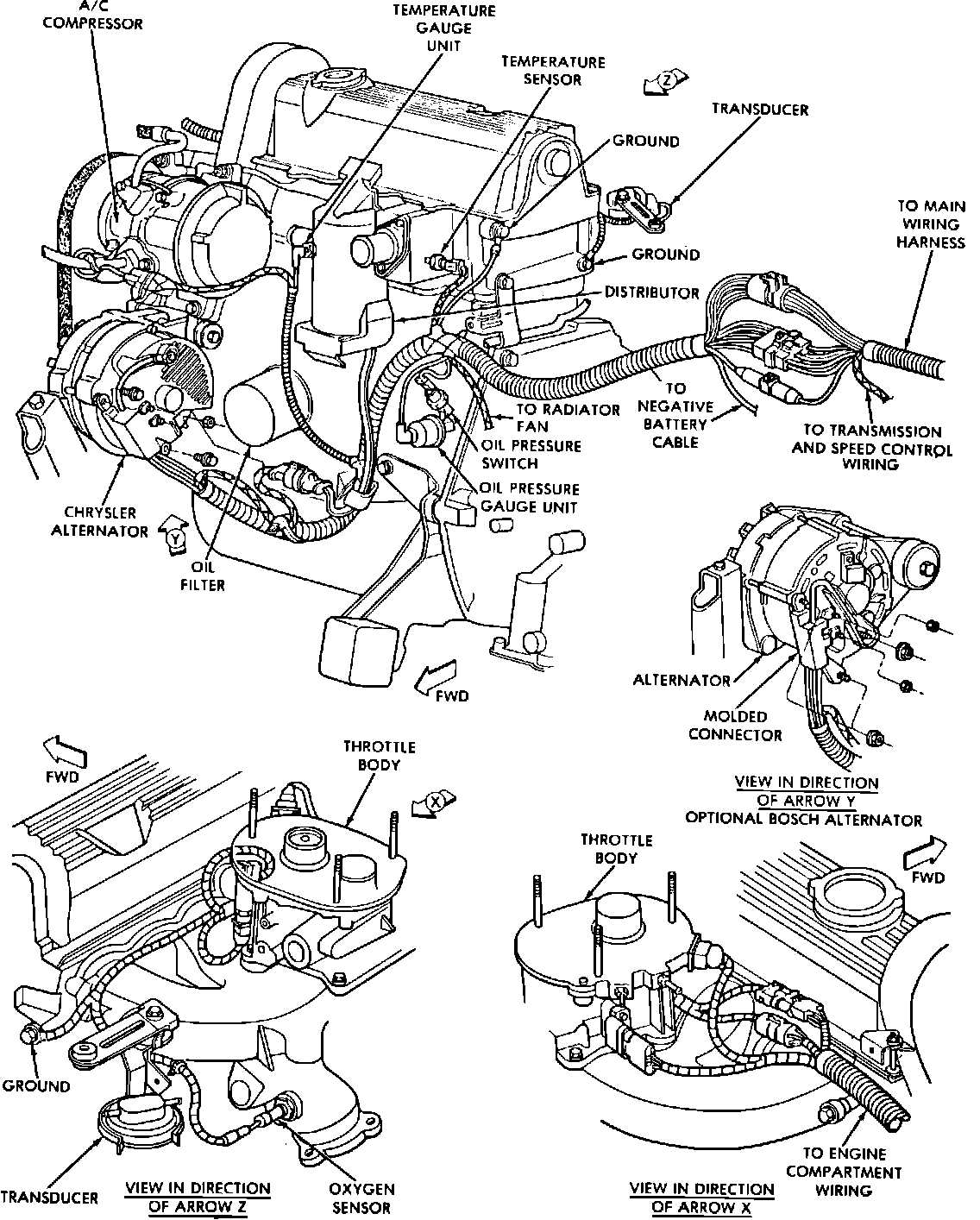

Engine electrical & related components.:




Right Rear Of Engine

Applicable to: 1986-87 Lancer & LeBaron Exc. turbocharged engine
