Ch-1, Checking Charging System For Fault Codes

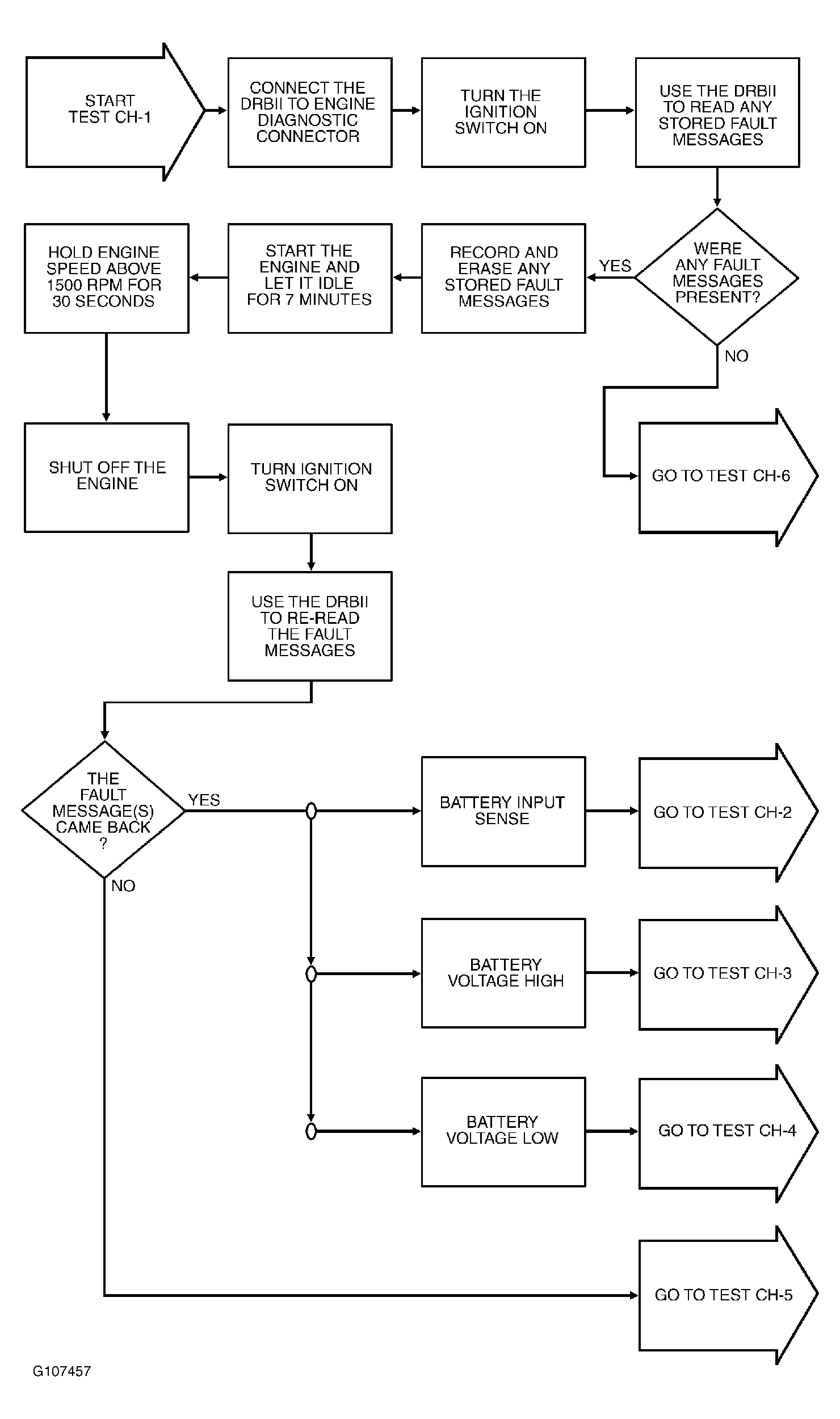

Fig 1: CH-1, Checking Charging System For Fault Codes

G107457
