NS-2, Checking Injector Flow & Fuel Control Faults

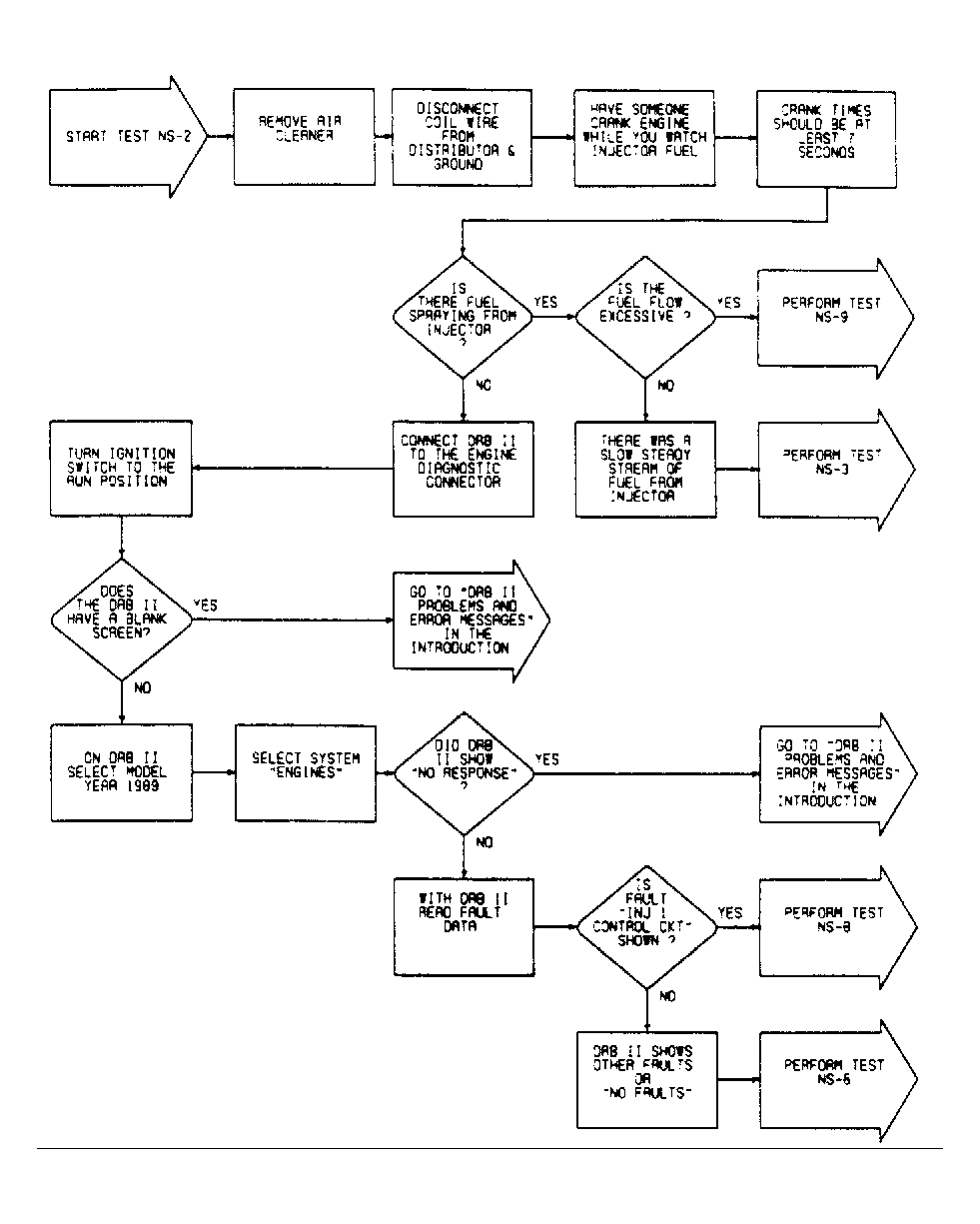

Fig 1: NS-2, Checking Injector Flow & Fuel Control Faults

G108017
