SP-5, Checking On/Off Switch & Stalk Feed

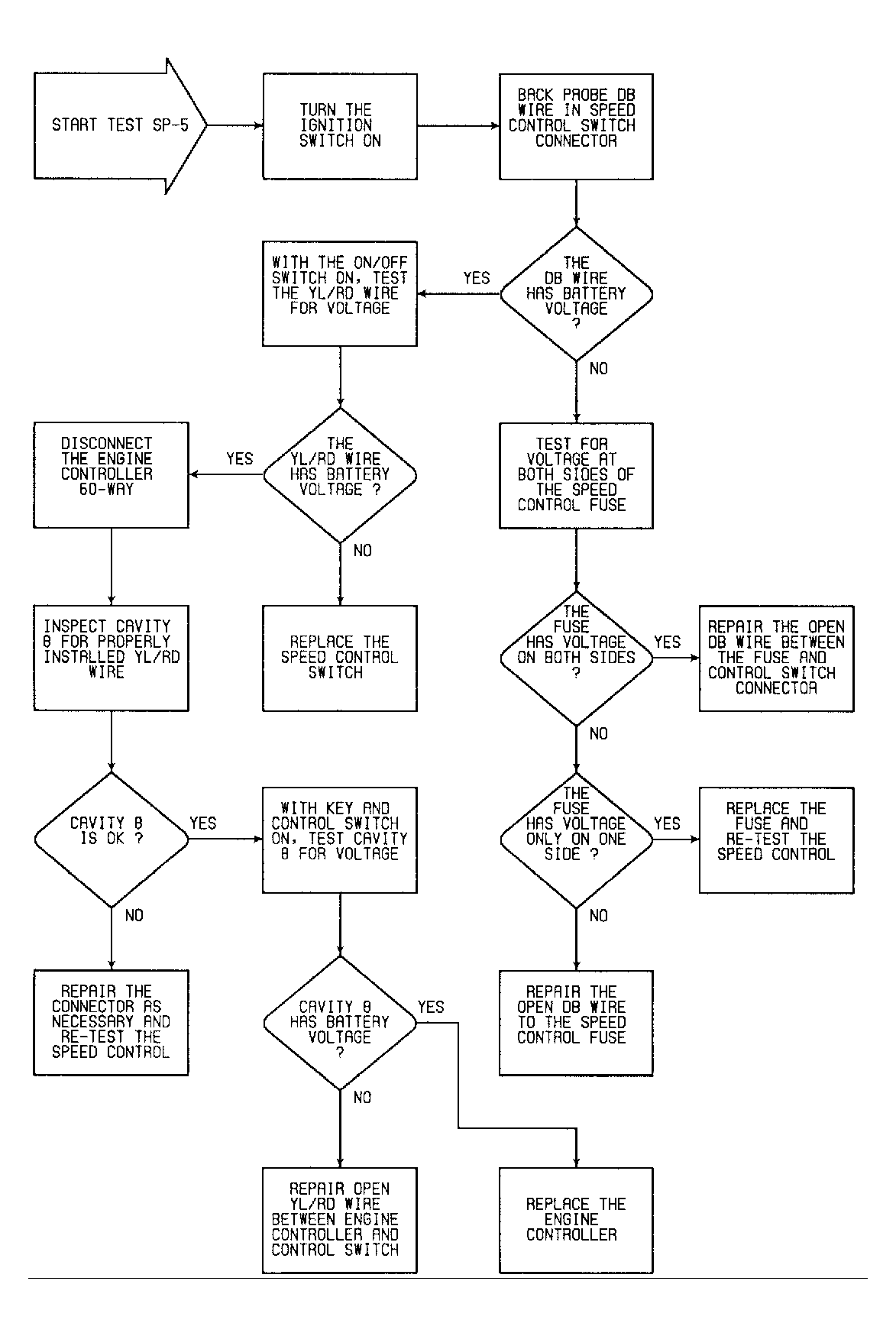

Fig 1: SP-5, Checking ON/OFF Switch & Stalk Feed (1 of 2)
G107303

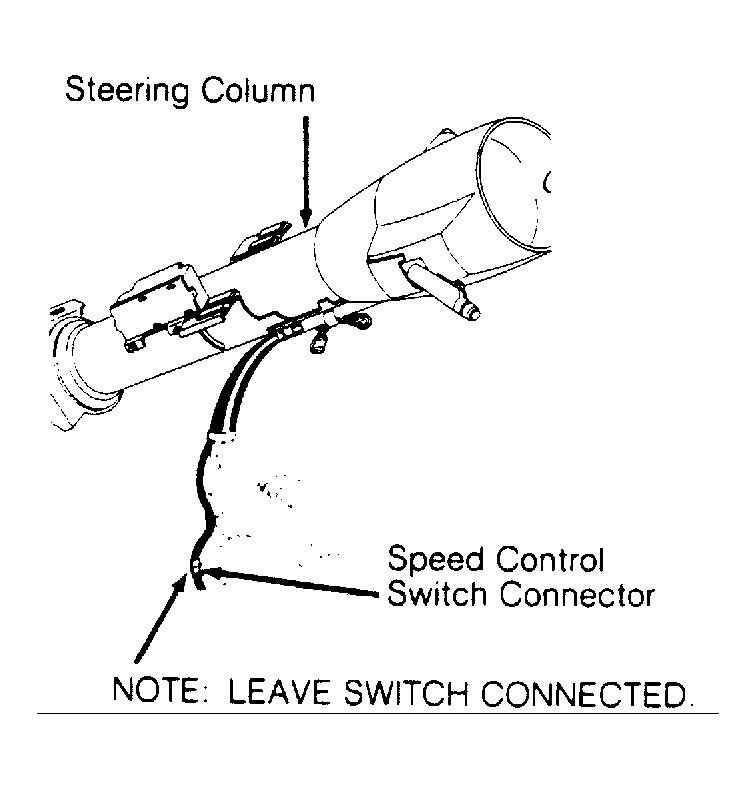

Fig 2: SP-5, Checking ON/OFF Switch & Stalk Feed (2 of 2)
G107304
