Test 61A - Testing For Bus (+) Open

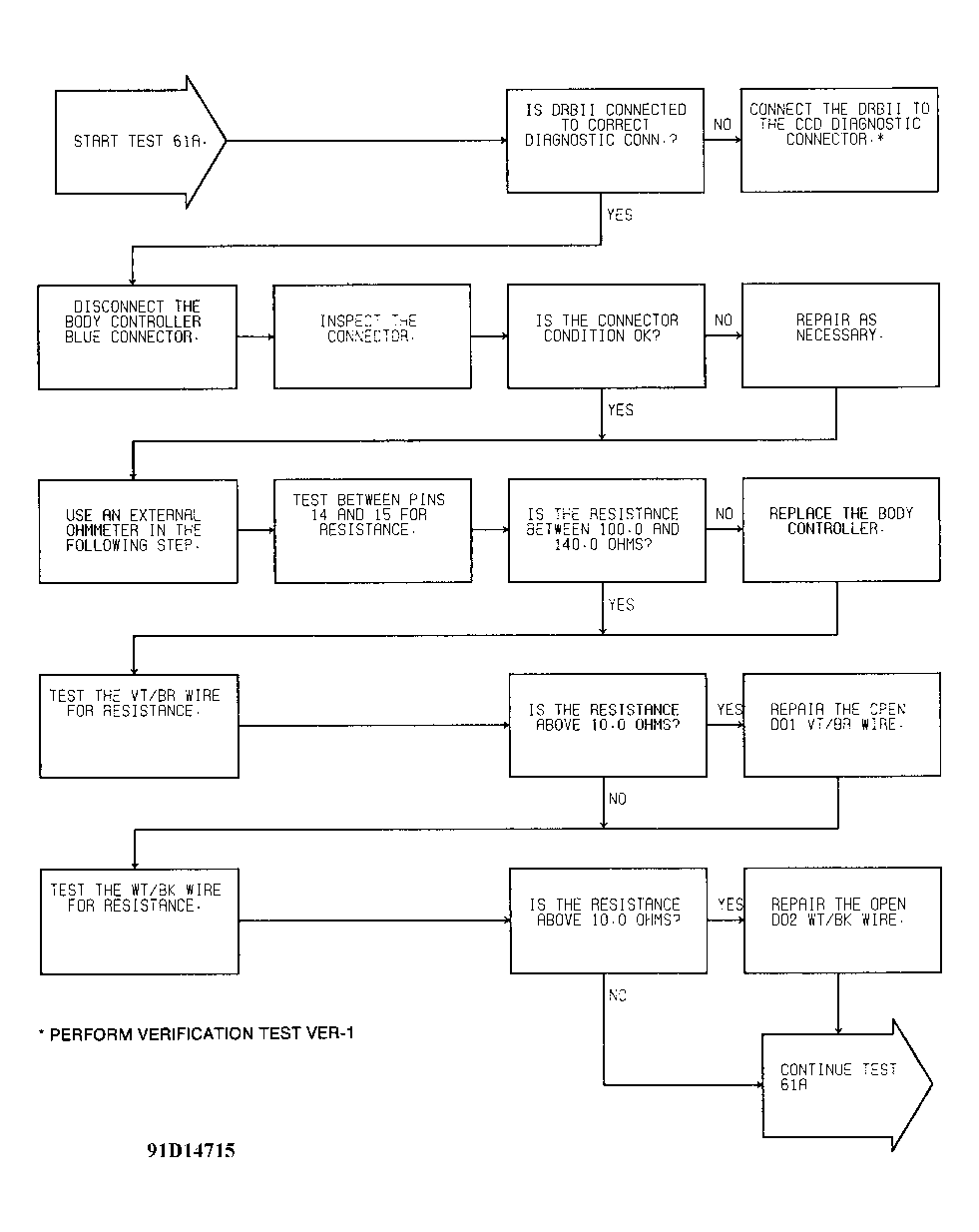

Fig 1: Test 61A (1 of 2) - Testing For Bus (+) Open
G91D14715

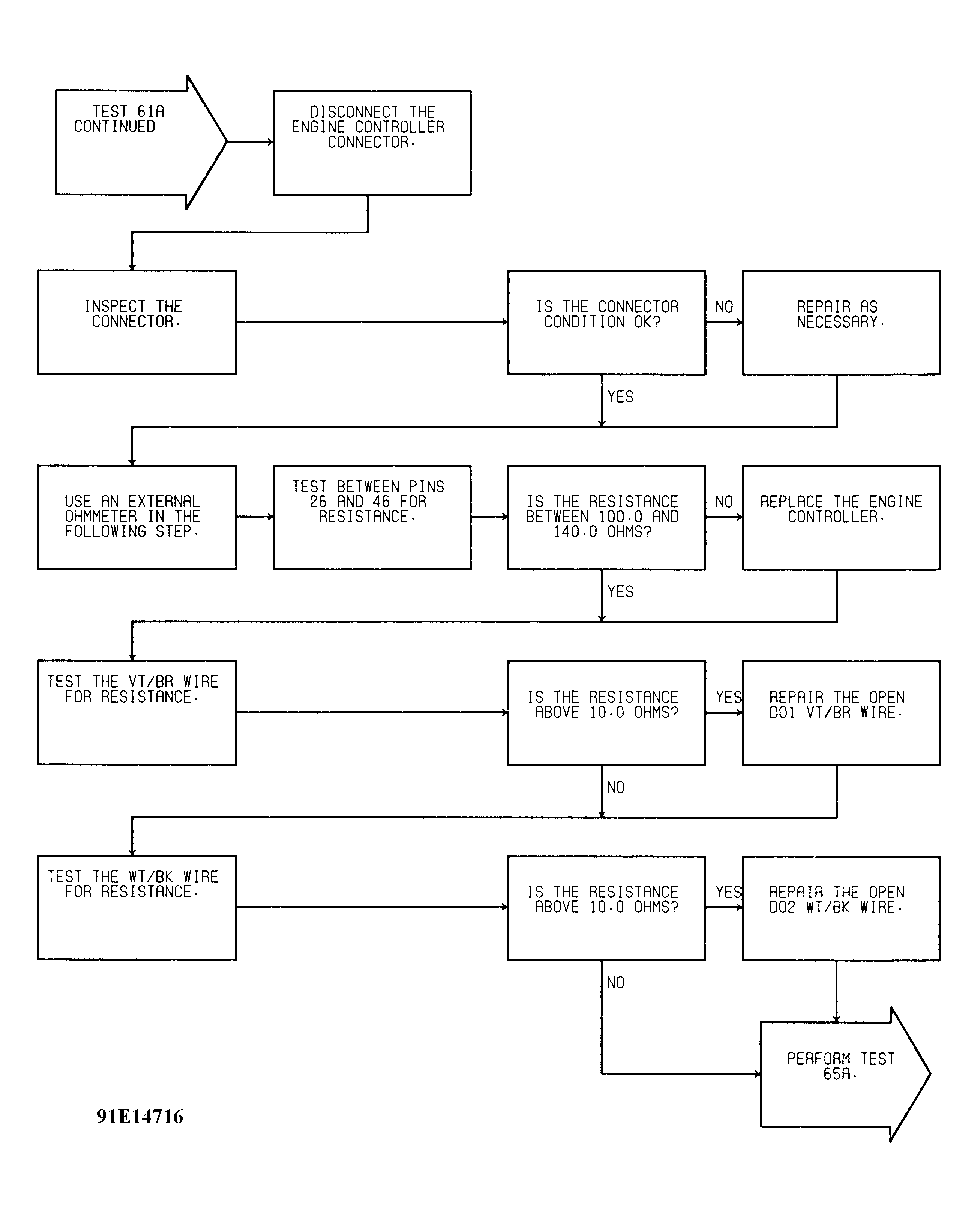

Fig 2: Test 61A (2 of 2) - Testing For Bus (+) Open
G91E14716
