Test 48A - Repairing Fuel Level Problem

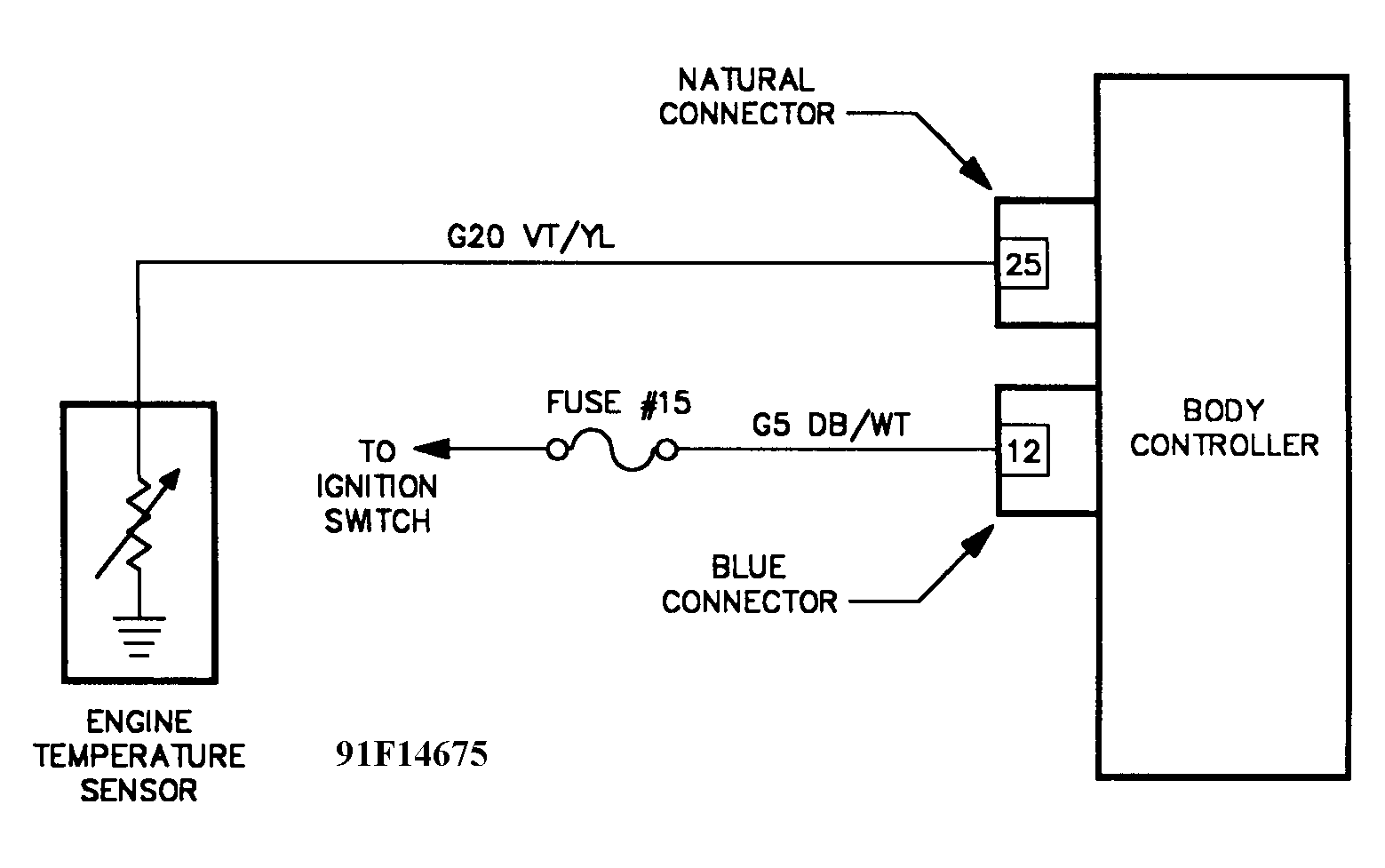

Fig 1: Test 48A Schematic - Repairing Fuel Level Problem

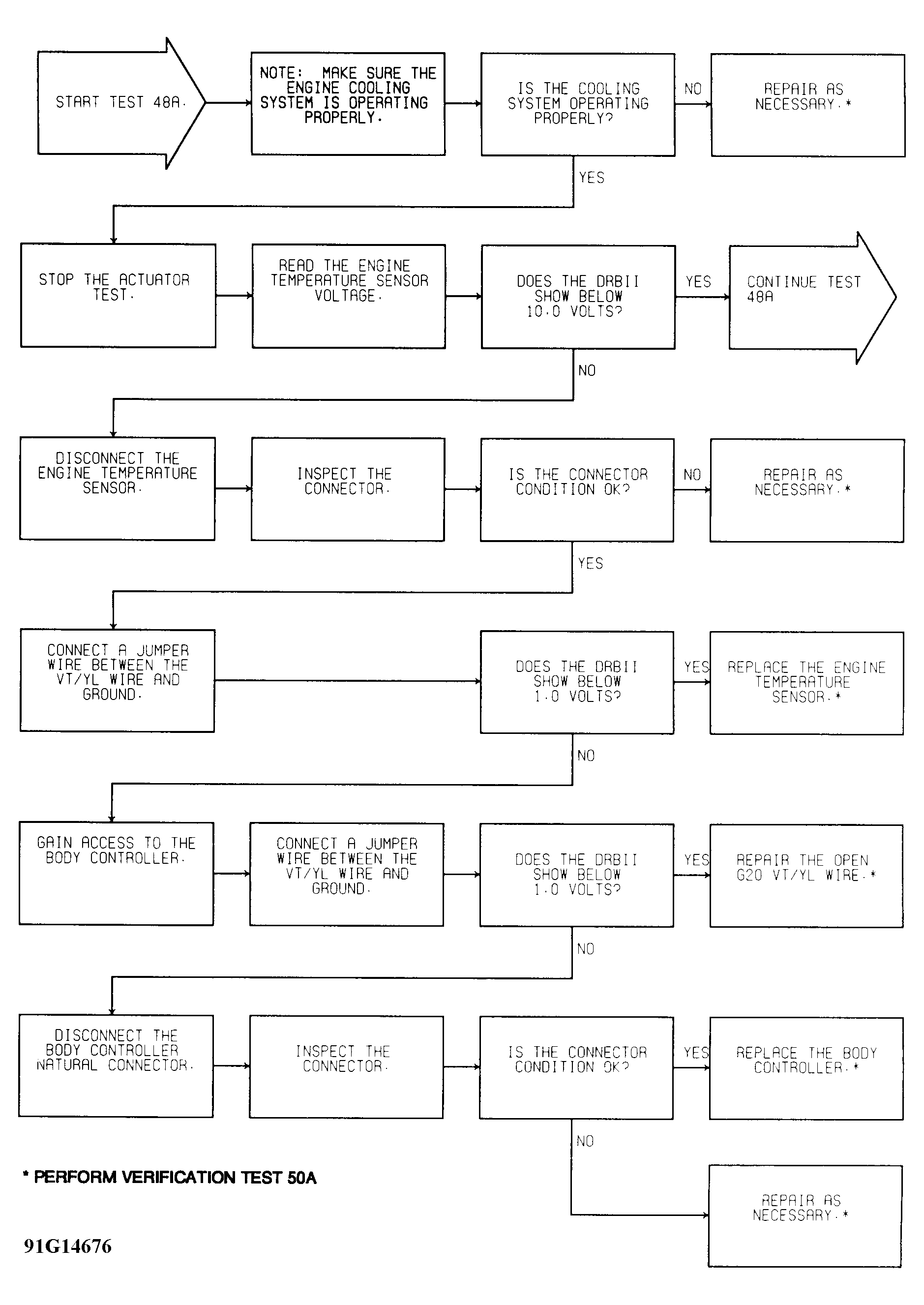

Fig 2: Test 48A Flow Chart (1 of 2) - Repairing Fuel Level Problem

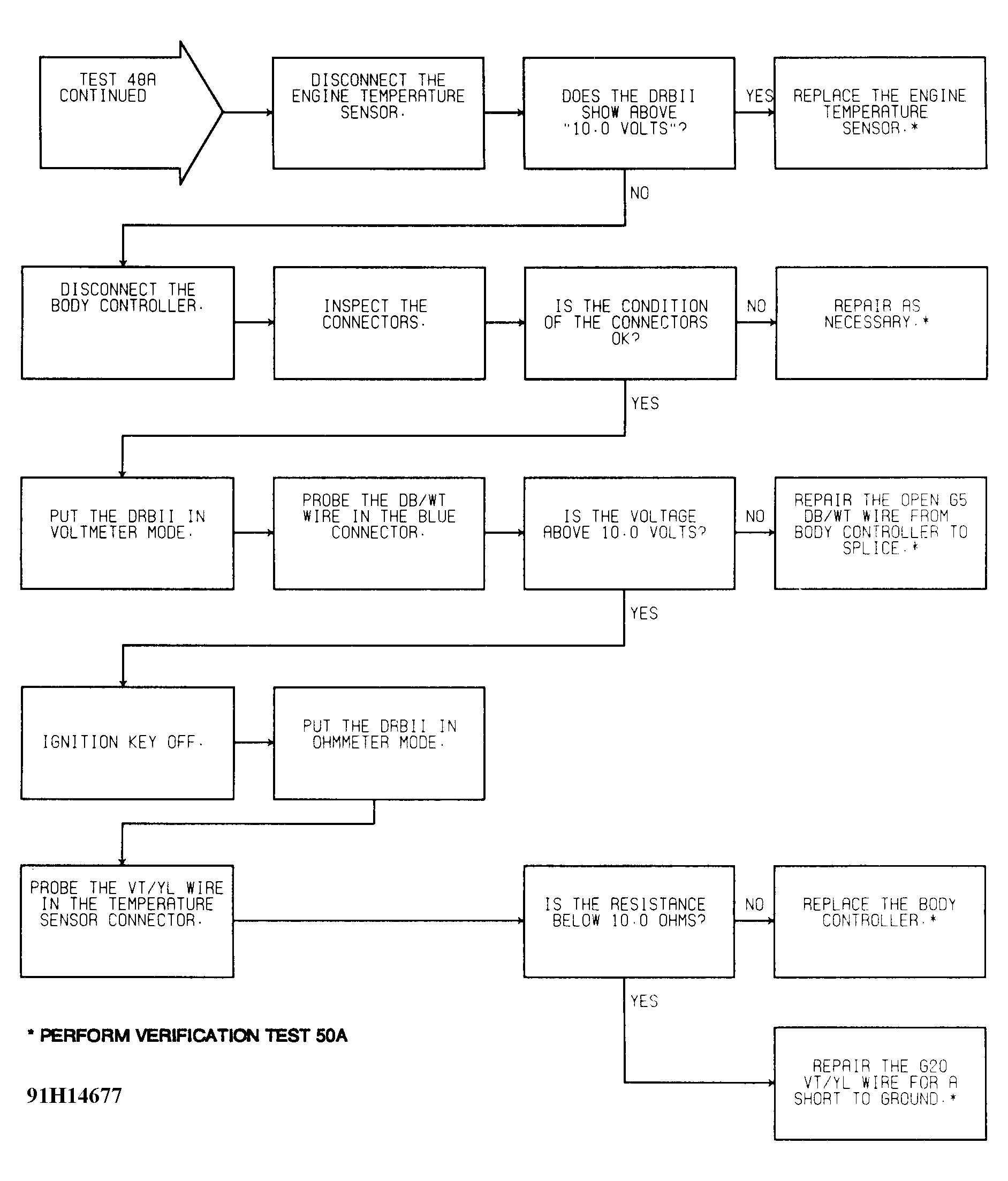

Fig 3: Test 48A Flow Chart (2 of 2) - Repairing Fuel Level Problem
