Connector Identification

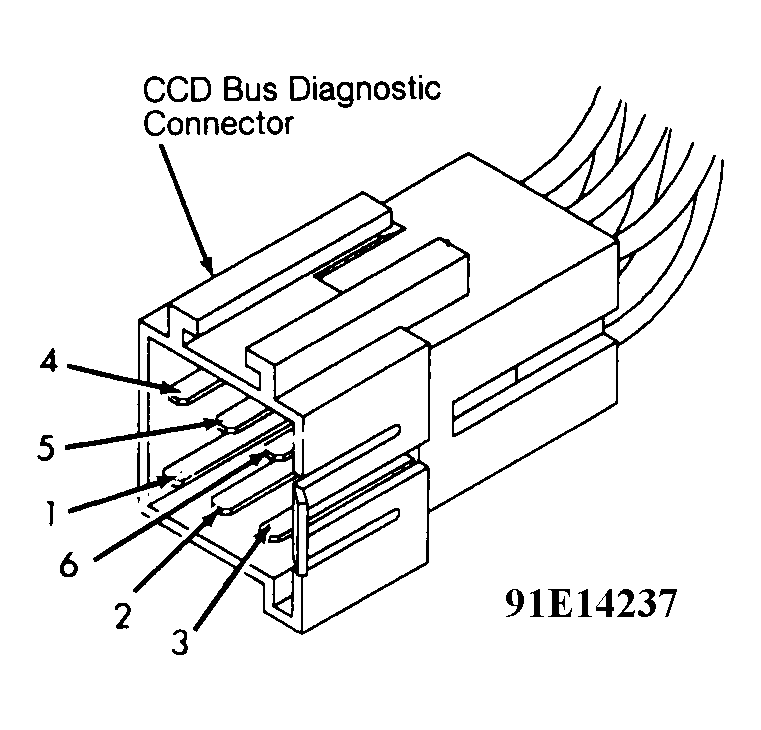

Fig 1: BUS Diagnostic Connector Terminal ID
G91E14237Courtesy of CHRYSLER MOTORS.
BLUE BODY COMPUTER CONNECTOR TERMINAL

Cavity Circuit Description
2 G75 18TN Door Ajar Switch Left Front Door
4 G26 20LB Key-in Buzzer Chime
6 E17 20YL/BK Elec Display
8 E92 20OR/BK Sw Pod To Illum Mod Dimming Control
10 G4 20DB Fuel Tank Sending Unit
12 G5 20DB/WT Ign Run/Start Feed
14 D1 18VT/BR Serial Buss B+
16 M1 18PK Courtesy, Dome, Visor Lamps
18 *** Not Used
20 V5 18DG Wiper Motor Feed
22 V6 18DB Wiper Motor
24 V7 18DG/WT Pulse Wipe Park (B-) Dwell
1 G16 20BK/LB Chime Ground
3 G10 20LG/RD Seat Belt Warning
5 G29 22BK/TN Low Wash Fluid Indicator
7 M22 18WT Illuminated Entry Relay Ground
9 V9 18DG/YL Pulse Wipe Intermittent
11 V10 18BR Wash Pump Motor
13 Z2 18BK/LG Gound
15 D2 18WT/BK Serial Buss B-
17 P38 20OR/WT Auto Door Lock Relay Coil B+
19 M51 18YL/RD Key In Light Ground
21 G13 18DB/RD Seat Belt Lamp
23 *** Not Used
25 M2 18YL Ground For Courtesy Lamps
NATURAL BODY COMPUTER CONNECTOR TERMINAL

Cavity Circuit Description
2 G74 18TN/RD Door Ajar Switch RT From Door
4 G78 18TN/BK Liftgate/Deck Lid Ajar Switch
6 n/a Not Used
8 n/a Not Used
10 n/a Not Used
12 n/a Not Used
14 L60 18TN RT Front Turn Signal
16 n/a Not Used
18 D14 18LB Decode - High Inst Cluster
20 P35 18OR/VT Power Door Lock B+ Lock
22 G60 22GY/YL Oil Pressure Sending Unit - Guage
24 D13 18OR/DB Decode - Low Inst Cluster
1 n/a Not Used
3 G76 18TN/YL Door Ajar Switch Rear Door
5 G42 20DB/YL Signal Ground For 4WD
7 n/a Not Used
9 n/a Not Used
11 n/a Not Used
13 L61 18LG LT Front Turn Signal
15 L94 20OR/WT Low Beam Relay Coil
17 L2 16LG Headlamp Dimmer Switch Feed
19 Q33 20BR/LB SP - Sense - GND From Lift Gate
21 G6 20GY Low Oil Pressure Warning
23 n/a Not Used
25 G20 20VT/YL Coolant Temp Sending Unit
SINGLE BOARD ENGINE CONTROLLER CONNECTOR (2.5L)

Cavity Circuit Description
1 K1 20DG/RD Map Sensor Signal
2 K2 20TN/BK Temperature Sensor Signal
3 A14 16RD/WT Direct Battery Feed
4 K4 18BK/LB Signal Ground
5 Z11 16BK/WT Signal Ground
6 K6 20 VT/WT Map Sensor Signal
7 K7 18OR 8 Volt Output
8 F20 16WT Ignition Feed
9 A21 14DB Ignition Start/Run
10 n/a n/a
11 Z12 16BK/TN Power Ground
12 Z12 16BK/TN Power Ground
13 n/a n/a
14 n/a n/a
15 n/a n/a
16 K11 18WT/DB Injector
17 n/a n/a
18 n/a n/a
19 K19 18GY Ignition Coil
20 K20 18DG Alternator
21 n/a n/a
22 K22 18OR/DB Throttle Position Sensor
23 n/a n/a
24 K24 18 GY/BK Distributor Pickup Signal
25 D21 20PK SCI (Transmit)
26 D1 20VT/BR CCD Bus (+)
27 C20 18BR A/C Clutch Input
28 n/a n/a
29 K29 18WT/PK Brake Switch Signal
30 T41 20BR/YL Park/Neutral Switch Signal
31 C27 20DB/PK Radiator Fan Relay
32 n/a n/a
33 V36 18 TN/RD Speed Control (Vacuum)
34 C13 20DB/OR A/C Clutch Relay Signal
35 K35 20GY/YL EGR Solenoid Signal (Calif)
36 n/a n/a
37 n/a n/a
38 n/a n/a
39 K39 18GY/RD Automatic Idle Speed Motor (AIS-3)
40 K40 18BR/WT Automatic Idle Speed Motor (AIS-1)
41 K41 18BK/DG Oxygen Sensor Signal
42 n/a n/a
43 n/a n/a
44 n/a n/a
45 D20 20LG SCI (Receive)
46 D2 20WT/BK CCD Bus (-)
47 G7 20WT/OR Distance Sensor Signal
48 V31 20BR/RD Speed Control Set
49 V32 20YL/RD Speed Control On/Off
50 V33 20WT/LG Speed Control Resume
51 K51 20DB/YL Auto Shutdown Signal
52 K52 20PK/BK Purge Solenoid Signal
53 V35 20LG/RD Speed Control (Vent)
54 K54 20OR/BK Park Throttle Unlock Solenoid
55 n/a n/a
56 G24 20GY/PK Emission Maint Reminder Lamp
57 n/a n/a
58 n/a n/a
59 K24 20GY/PK Automatic Idle Speed Motor (AIS-4)
60 K60 18YL/BK Automatic Idle Speed Motor (AIS-3)
SINGLE BOARD ENGINE CONTROLLER CONNECTOR (3.0L)

Cavity Circuit Description
1 K1 20DG/RD MAP Sensor Signal
2 K2 20TN/BK Temperature Sensor Signal
3 A14 16RD/WT Direct Battery Feed
4 K4 18BK/LB Signal Ground
5 Z11 16BK/WT Signal Ground
6 K6 20VT/WT Map Sensor Signal
7 K7 18OR 8 Volt Output
8 A61 16DG/BK Injector
9 A21 14DB Ignition Start/Run
10 n/a n/a
11 Z12 16BK/TN Power Ground
12 Z12 16BK/TN Power Ground
13 n/a n/a
14 K13 18YL/WT Injector
15 K12 18TN Injector
16 K11 18WT/DB Injector
17 n/a n/a
18 n/a n/a
19 K19 18GY Ignition Coil
20 K20 18DG Alternator
21 n/a n/a
22 K22 18OR/DB Throttle Position Sensor
23 n/a n/a
24 K24 18GY/BK Distributor Pickup Signal
25 D21 20PK SCI (Transmit)
26 D1 20VT/BR CCD Bus (+)
27 C20 18BR A/C Clutch Input
28 n/a n/a
29 K29 18WT/PK Brake Switch Signal
30 T41 20BR/YL Park/Neutral Switch Signal
31 C27 20DB/OR Radiator Fan Relay
32 n/a n/a
33 V36 20TN/RD Speed Control (Vacuum)
34 C13 20DB/OR A/C Clutch Relay Signal
35 n/a n/a
36 n/a n/a
37 n/a n/a
38 n/a n/a
39 K39 18GY/RD Automatic Idle Speed Motor (AIS-3)
40 K40 18BR/WT Automatic Idle Speed Motor (AIS-1)
41 K41 18BK/DG Oxygen Sensor Signal
42 n/a n/a
43 n/a n/a
44 K44 18TN/YL Distributor
45 D20 20LG SCI (Receive)
46 D2 20WT/BK CCD Bus (-)
47 G7 20WT/OR Distance Sensor Signal
48 V31 20BR/RD Speed Control Set
49 V32 20YL/RD Speed Control On-Off
50 V33 20WT/LG Speed Control Resume
51 K51 20DB/YL Auto Shutdown Signal
52 K52 20PK/BK Purge Solenoid Signal
53 V35 20LG/RD Speed Control (Vent)
54 n/a n/a
55 n/a n/a
56 G24 20GY/PK Emission Maint Reminder Lamp
57 n/a n/a
58 n/a n/a
59 K59 18VT/BK Automatic Idle Speed Motor (AIS-4)
60 K60 18YL/BK Automatic Idle Speed Motor (AIS-2)
SINGLE BOARD ENGINE CONTROLLER CONNECTOR (3.3L)

Cavity Circuit Description
1 K1 20DG/RD MAP Sensor Signal
2 K2 20TN/BK Temperature Sensor Signal
3 A14 16RD/WT Direct Battery Feed
4 K4 18BK/LB Signal Ground
5 Z11 16BK/WT Signal Ground
6 K6 20VT/WT MAP Sensor Signal
7 K7 18OR 8 Volt Output
8 A61 16DG/BK Injector
9 A21 14DB Ignition Start/Run
10 n/a n/a
11 Z12 16BK/TN Power Ground
12 Z12 16BK/TN Power Ground
13 n/a n/a
14 Z13 18YL/WT Injector
15 K12 18TN Injector
16 K11 18WT/DB Injector
17 K17 18DB/YL Ignition Coil
18 K18 18RD/YL Ignition Coil
19 K19 18GY Ignition Coil
20 K20 18DG Alternator
21 K21 18BK/RD Charge Temp Sensor
22 K22 18OR/DB Throttle Position Sensor
23 n/a n/a
24 K24 18GY/BK Distributor Pickup Signal
25 D21 20PK SCI (Transmit)
26 D1 20VT/BR CCD Bus (+)
27 C20 18BR A/C Clutch Inupt
28 n/a n/a
29 K29 18WT/PK Brake Switch Signal
30 T41 20BR/YL Park/Neutral Switch Signal
31 C27 20DB/PK Radiator Fan Relay
32 n/a n/a
33 V36 20TN/RD Speed Control (Vacuum)
34 C13 20DB/OR A/C Clutch Relay Signal
35 n/a n/a
36 n/a n/a
37 n/a n/a
38 n/a n/a
39 K39 18GY/RD Automatic Idle Speed Motor (AIS-3)
40 K40 18BR/WT Automatic Idle Speed Motor (AIS-1)
41 K41 18BK/DG Oxygen Sensor Signal
42 K42 18BK/LG Detonation Sensor Signal
43 n/a n/a
44 K44 18TN/YL Distributor
45 D20 20LG SCI (Receive)
46 D2 20WT/BK CCD Bus (-)
47 G7 20WT/OR Distance Sensor Signal
48 V31 20BR/RD Speed Control Set
49 V32 20YL/RD Speed Control On-Off
50 V33 20WT/LG Speed Control Resume
51 K51 20DB/YL Auto Shutdown Signal
52 K52 20PK/BK Purge Solenoid Signal
53 V35 20LG/RD Speed Control (Vent)
54 n/a n/a
55 n/a n/a
56 G24 20GY/PK Emission Maint Reminder Lamp
57 n/a n/a
58 n/a n/a
59 K59 18VT/BK Automatic Idle Speed Motor (AIS-4)
60 K60 18YL/BK Automatic Idle Speed Motor (AIS-2)

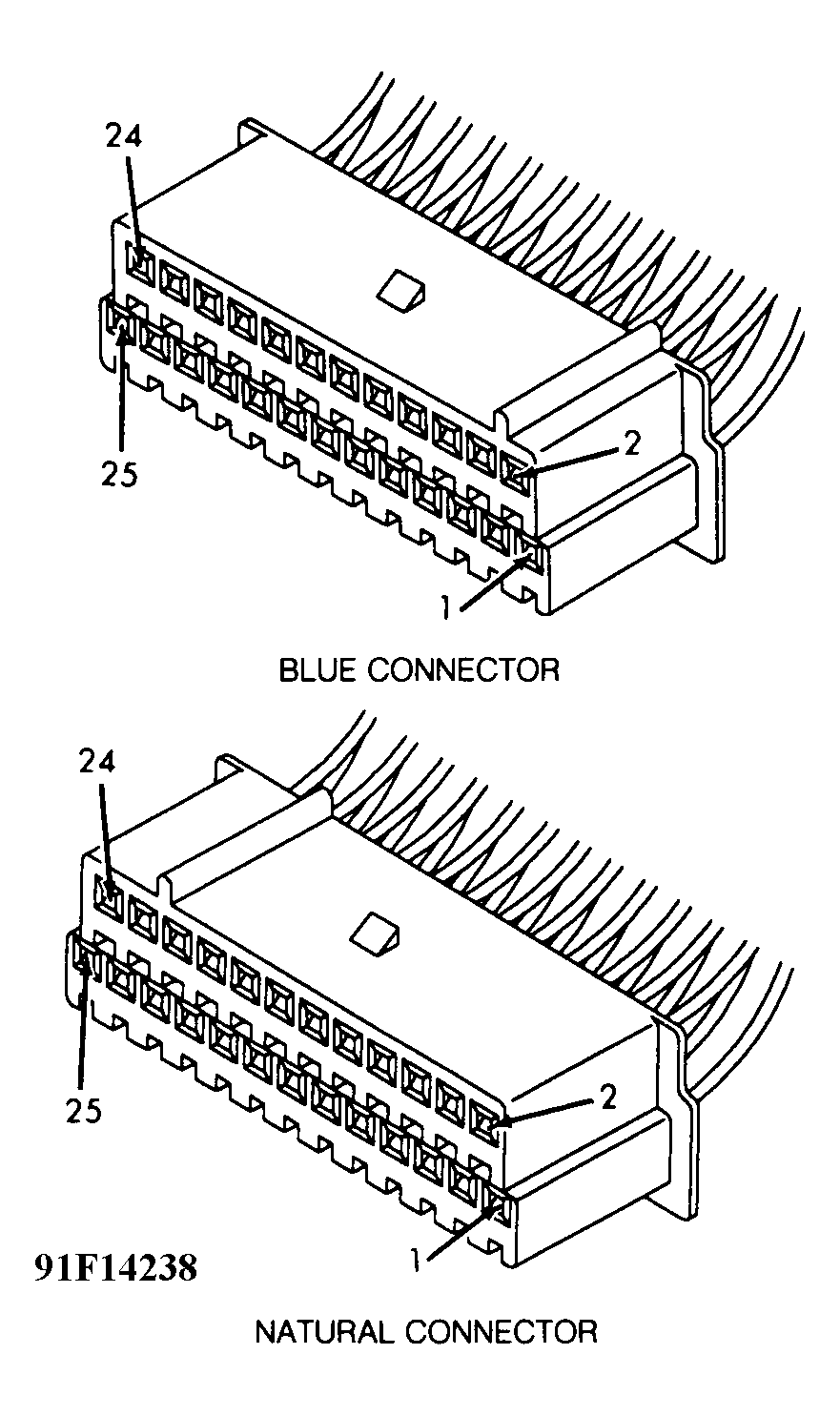

Fig 2: Body Control Computer Terminal ID
G91F14238Courtesy of CHRYSLER MOTORS.

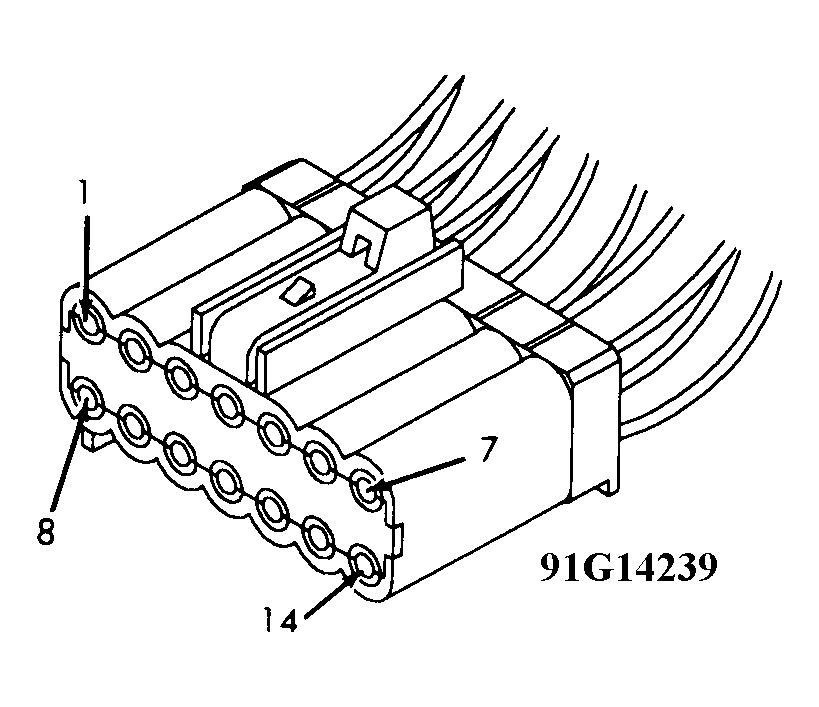

Fig 3: Identifying Instrument Cluster Connector Terminal ID
G91G14239Courtesy of CHRYSLER MOTORS.
